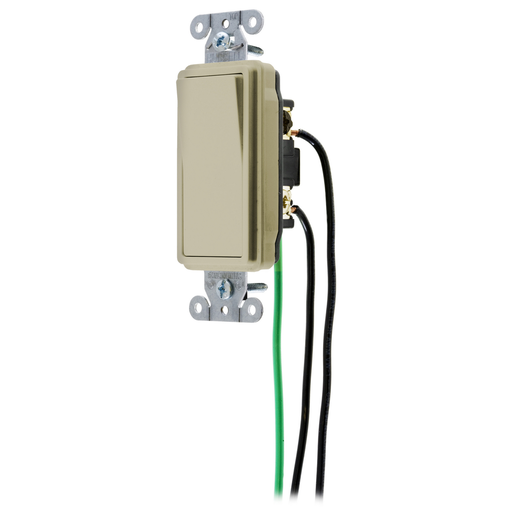

HWDK DSL320I SWITCH, DECO, 3W, 20A

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DSL320I | Codale Part # 4389810
$62.59/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Spec Grade, Decorator Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Ivory

Technical Information

Action
SPDT
Actuator
Rocker
Amperage
20 Amp
Applications
8" #12 AWG THHN
Conductor Size
12 AWG
Contact Configuration
2 Position
Contact Material
Silver Alloy
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Flamability Class
UL 94V-2
Indicator
None
Material
Polycarbonate
Max Current
20 A
Max Voltage
277 V
Number of Poles
1-1 Pole
Operating Cycles
50k
Operating Temperature
-40 degrees C
Screw Material
Brass

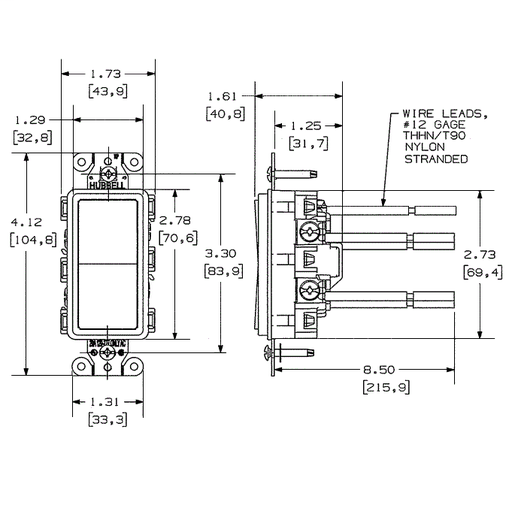

Size
4.12 in x 1.73 in x 1.61 in
Standard
UL
Style
Three Way
Tc Connection
Pre-Wired Leads
Type
Rocker/Decorator
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
AC Decorator Switches

General Product Info

12-Digit UPC
783585187037
Color
Ivory
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
General Purpose
Product UPC
78358518703
Weight
0.1500 lb

Dimensions

Height
1.61 Inch
Length
4.12 Inch
Width
1.73 in

Certifications and Compliance

Country of Origin
China
Features
  • Labor Saving
  • Thread cleaning captive mounting screw
  • Steel, zinc plated bridge is corrosion resistant
