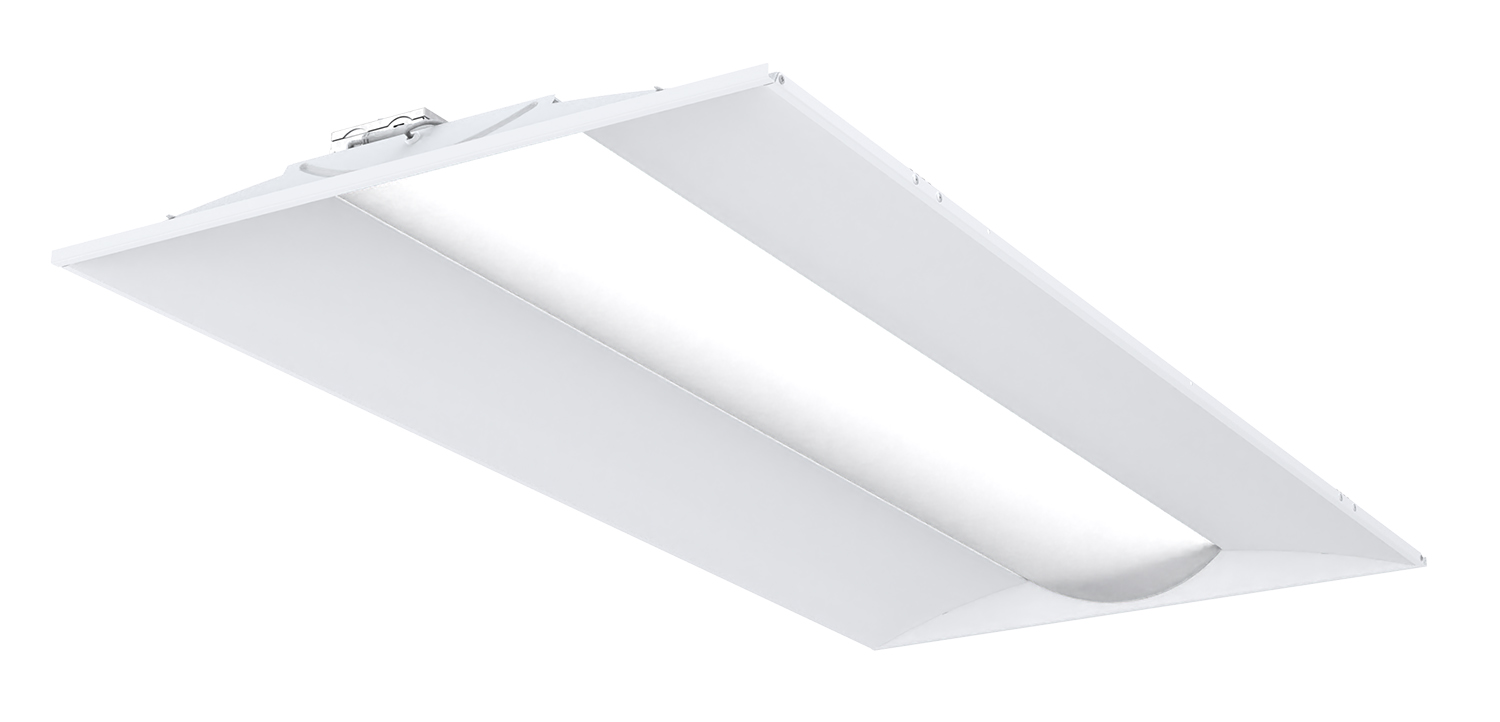

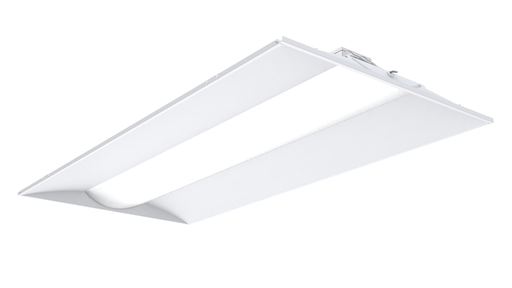

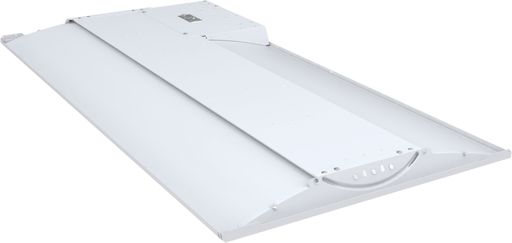

Product image for Lithonia STAKS-2X4-ALO6-SWW7 2x4 LED Center Element Lay-In Troffer, Selectable Lumens/CCT, 120-277V
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Lithonia STAKS-2X4-ALO6-SWW7 2x4 LED Center Element Lay-In Troffer, Selectable Lumens/CCT, 120-277V

Manufacturer: Lithonia Lighting | Catalog # STAKS2X4ALO6SWW7 | Codale Part # 4390091
*Call For Price*
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Recessed Center Element Lay-in Series, Switchable, 2FT x 4FT, Switchable lumens . 4000LM, 5000LM, and 6000LM, Switchable CCT . 3500K, 4000K, and 5000K

Technical Information

Applications
Education,Government,Healthcare,Hospitality,Offices & Banks
Average Rated Life
60,000 hr
Color Rendering Index
82
Color Temperature
3500 K
Correlated Color Temp
3500 K
Dimmable?
Yes
Lamp Type
LED
Lens Color
White
Lens Material
Polycarbonate
Lumens
4,000 Lumen
Material
Steel
Mounting Type
Recessed
Number of Lamps
1
Standard
CSA
Style
Traditional
Type
Troffer
Voltage
120 Volt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
194995082063
Color
White
Construction
New Construction,Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Matte
Product Type
Troffer
Product UPC
19499508206
Shape
Rectangle
Weight
12.35 lb

Dimensions

Height
2 Inch
Length
47.8 Inch
Warranty Length
5 yr
Width
23.9 in

Certifications and Compliance

Country of Origin
Malaysia
Features
  • STACK Switch provides both functionality and efficiency. Selectable lumens allow for a variety of mounting heights and switchable color temperature allows you to fine-tune the look of your space. It is the fully switchable version of the next generation family of products. STACK Switch is the perfect choice for schools, commercial office spaces and many more applications.
  • DESIGN: Wide 7 lens and curved reflector give STACK a high-end aesthetic.
  • ENERGY SAVINGS: Ultra-efficient LEDs and Drivers lead to maximum energy savings
  • DIMMING: 0-10V dimming allows for you to get the brightness of your space just right.
  • RATINGS/LISTINGS: CSA, IC, DLC, Damp Location
  • VOLTAGE: MVOLT functions with 120v or 277v. Easy installation in T-grid ceilings, Surface mount boxes, or, drywall grid adapters.
  • HOURS OF LIFE: 80% LED lumen maintenance at 60,000 hours (L80/60,000)
  • INSTALLATION: Shallow (<2) depth allows for mounting in constricted plenum spaces
  • BATTERY: No emergency backup at this time
  • WARRANTY: 5-year limited warranty
