Panduit KJS6X88TCBL Keystone Cat 6A Shielded Jack, Die-Cast Body with Blackack Facing.

Manufacturer: PANDUIT | Catalog # KJS6X88TCBL | Codale Part # 4392663
$38.87/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet

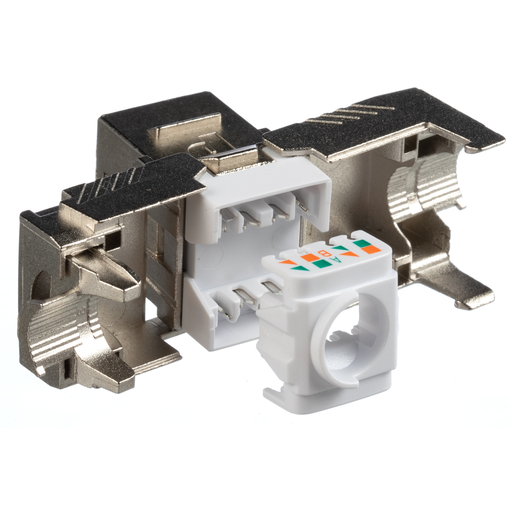

The keystone Cat 6A shielded RJ45 jack module is designed to terminate 4-pair, 22-24 AWG shielded twisted pair cable. Shielded jack modules use a forward motion termination method to optimize performance. The die-cast housing provides a robust design to protect against physical and electromagnetic damage. The jack module is silver with a black front.

Technical Information

Max Operating Temperature
140 degrees F
Min Operating Temperature
-10 degrees C
Type
Jack Module

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Keystone

General Product Info

12-Digit UPC
613056800786
Color
Black
Product UPC
61305680078
Weight
0.0700 lb

Dimensions

Depth
41.6 mm
Height
0.81 Inch
Overall Length
41.6 mm
Width
0.81 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China

Certifications & Compliance

Prop 65 Warning
N
Prop 65
  • N
Standards and Certifications
  • Standards Met: Meets ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA Channel Requirements for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Meets ANSI/TIA-568.2-D and ISO 11801 Category 6A Component Requirements at Swept Frequencies up to 500 MHz, Complies with ANSI/TIA-1096A, Meets IEC 60603-7 and IEC 60512-99-002, Rated for 750 Cycles with IEEE 802.3af, 802.3at, and 802.3bt type 1, 2, 3, and 4 for Power Up to 100W, and RoHS Compliant
