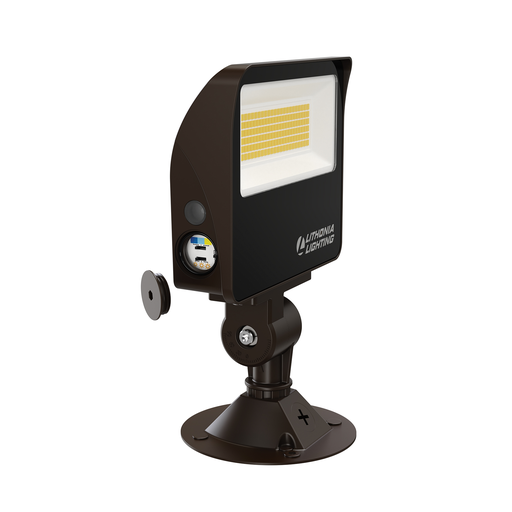

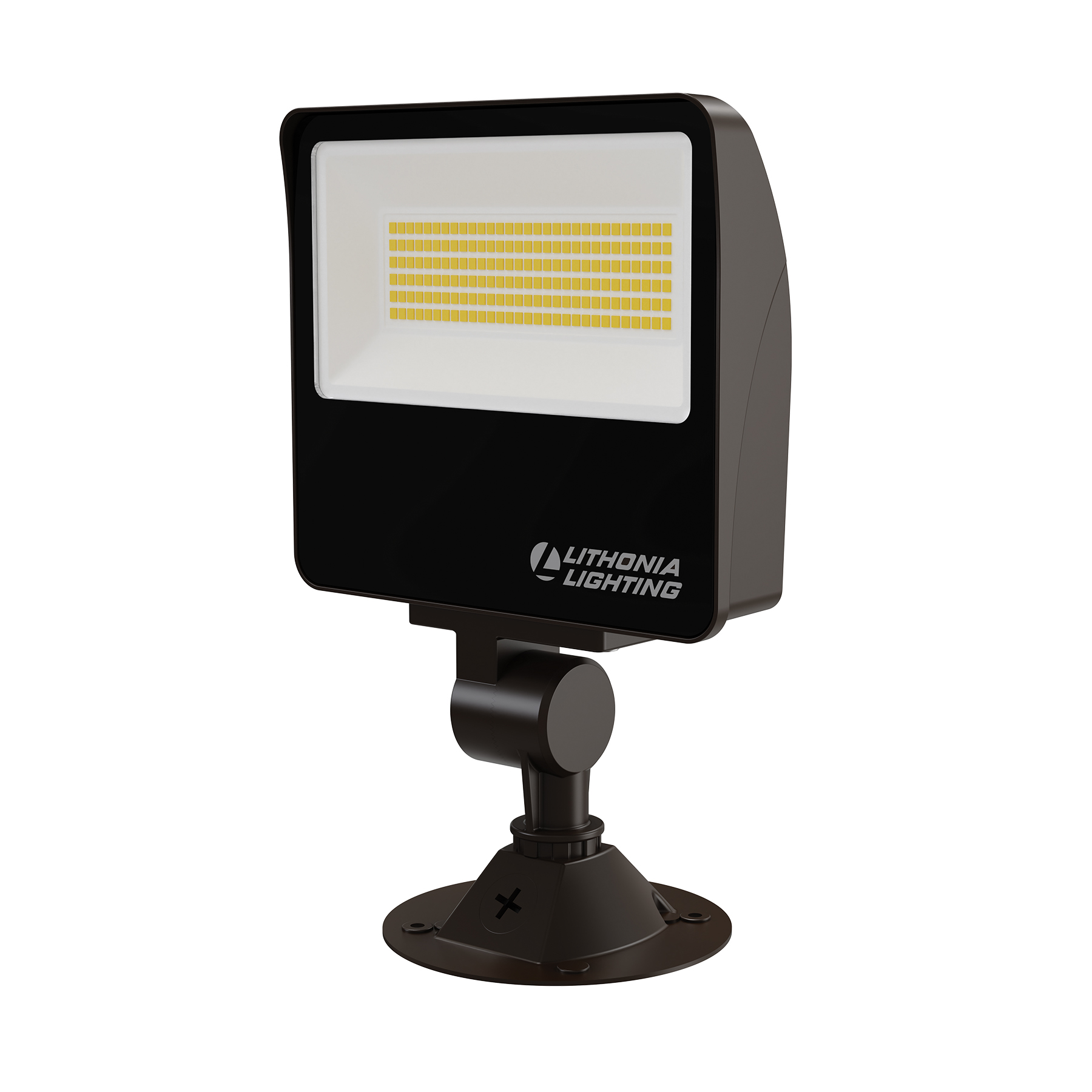

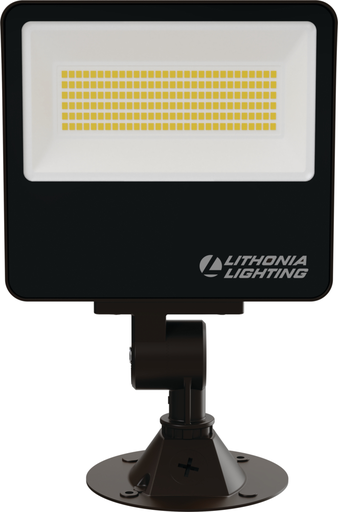

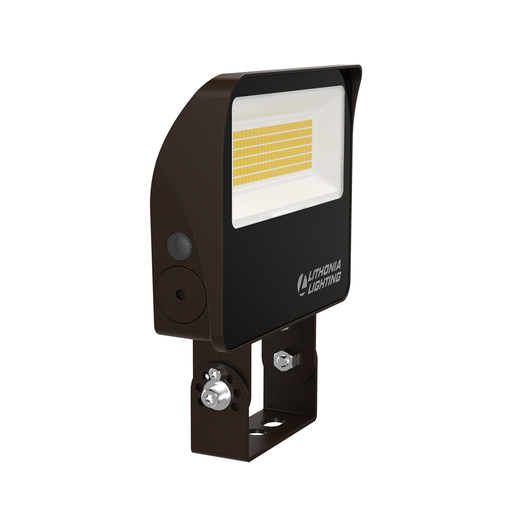

Lithonia ESXF2-ALO-SWW2-KY-DDB-M2 56W LED Floodlight, Selectable Lumens 3500 - 7500, Switchable CCT 3K/4K/5K, 120V-277V, Photocell, Knuckle & Yoke, Mounting Plate - Bronze

Manufacturer: Lithonia Lighting | Catalog # ESXF2-ALO-SWW2-KY-DDB-M2 | Codale Part # 4393966
$174.32/ea
ea
Log in or register to view your price, purchase history, and more!
15 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
The Lithonia Lighting ESXF LED all-in-one floodlight gives you the superior illumination you want. ESXF delivers easy access to adjustable lumen output, color switching, and a selectable photocell, so you always have the luminaire you need on the spot. Choose your mounting with two popular mounting options standard in each box.

Technical Information

Applications
Automotive & Parking,Decorative,Education,Entertainment,Food Service,Government,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Parking Garage,Residential,Retail,Sports And Recreation
Average Rated Life
50,000 hr
Color Rendering Index
80
Dimmable?
Yes
Lamp Type
LED
Lumens
7,500 Lumen
Material
Aluminum
Mounting Type
Knuckle,Yoke
Number of Lamps
1
Power Rating
56
Size
9.75 x 6.75 x 1.8 IN
Standard
C-UL-USDLC Premium
Type
Floodlight
Voltage
120 Volt
Wattage
56 Watt

Manufacturer Information

Brand
Lithonia Lighting
Sub Brand
Contractor Select

General Product Info

12-Digit UPC
196182393242
Color
Bronze
Environment
Outdoor
Environmental Conditions
Outdoor
Finish
Gloss
Fixture Type
FloodLight
Product Type
Floodlight
Product UPC
19618239324
Shape
Rectangle
Weight
7.3250 lb

Dimensions

Height
1.8 Inch
Length
9-3/4 Inch
Warranty Length
5 yr
Width
6.75 in

Certifications and Compliance

Country of Origin
Vietnam
Application
  • Automotive & Parking
  • Decorative
  • Education
  • Entertainment
  • Food Service
  • Government
  • Hospitality
  • House of Worship
  • Manufacturing
  • Offices & Banks
  • Parking Garage
  • Residential
  • Retail
  • Sports and Recreation
Features
  • DESIGN: The Lithonia Lighting® ESXF LED is the all-in-one floodlight, providing easy access to adjustable lumen output (ALO), tri-level CCT switching, and selectable dusk-to-dawn photocell
  • ENERGY SAVINGS: Energy-efficient LEDs with a lumen output of 3500, 5500, and 7500 lumens
  • SELECTABLE: Adjustable Lumen Output, Switchable CCT (3000K, 4000K, 5000K) and Standard Photocell
  • RATINGS: IP66 Rated aluminum housing, DLC Certified, CSA certified to US and Canadian standards
  • VOLTAGE: MVOLT (120-277V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor >90% and THD <20%
  • INTENDED USE: Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources
  • INSTALLATION: Ships with NPT threaded knuckle mount factory installed and can be mounted to conduit bodies or to 4\" electrical boxes using the provided round mounting plate, included yoke mounts can be easily changed in the field
  • CONSTRUCTION: Sealed die-cast aluminum body and IP66 listed to withstand moisture and the elements
  • WARRANTY: Five-year limited warranty
Mounting
  • Knuckle
  • Yoke
Standard
  • C-UL-USDLC Premium
