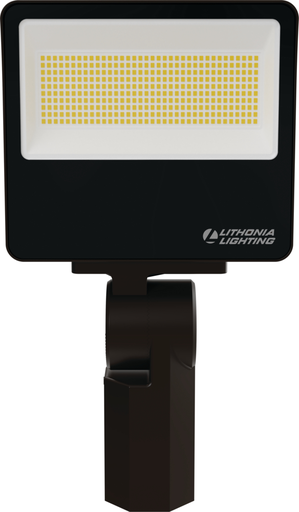

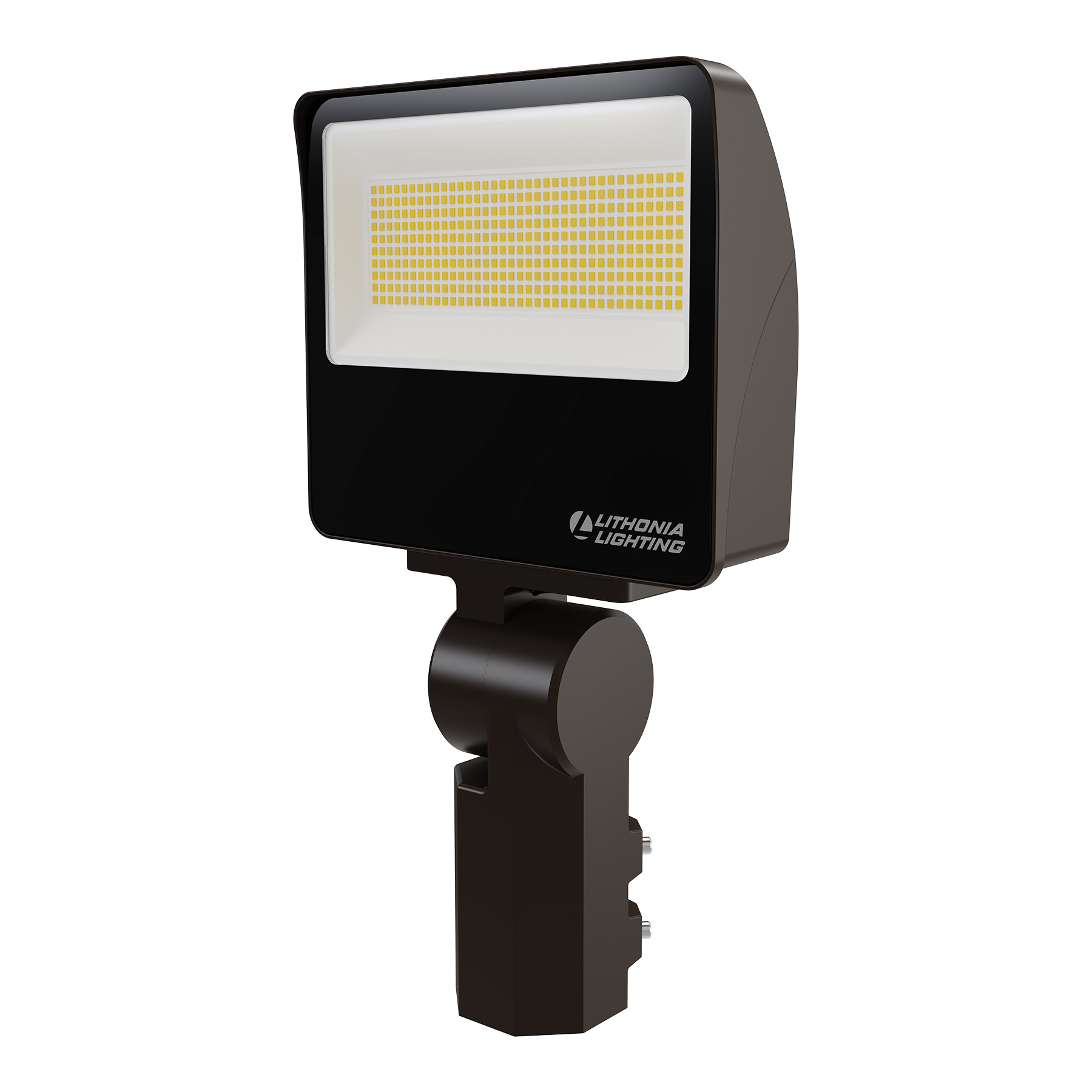

Lithonia ESXF3-ALO-SWW2-YS-DDB-M2 100W LED Floodlight, Selectable Lumens 8500 - 14,000, Switchable CCT 3K/4K/5K, 120V-277V, Photocell, Yoke & SlipFitter Mount - Bronze

Manufacturer: Lithonia Lighting | Catalog # ESXF3-ALO-SWW2-YS-DDB-M2 | Codale Part # 4393980
$298.83/ea
ea
Log in or register to view your price, purchase history, and more!
19 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
The Lithonia Lighting ESXF LED all-in-one floodlight gives you the superior illumination you want. ESXF delivers easy access to adjustable lumen output, color switching, and a selectable photocell, so you always have the luminaire you need on the spot. Choose your mounting with two popular mounting options standard in each box.

Technical Information

Applications
Automotive & Parking,Decorative,Education,Entertainment,Food Service,Government,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Parking Garage,Residential,Retail,Sports And Recreation
Average Rated Life
50,000 hr
Color Rendering Index
80
Color Temperature
3000 ,4000 ,5000 ,Variable K
Correlated Color Temp
3000 ,4000 ,5000 ,Variable K
Dimmable?
Yes
Lamp Type
LED
Lumens
8,000 Lumen
Material
Aluminum
Mounting Type
Tenon Slipfitter,Yoke
Number of Lamps
1
Power Rating
100
Power Source
Hardwired
Size
16.07 x 8.95 x 2.84 IN
Style
Contemporary
Type
Floodlight
Voltage
120 Volt
Wattage
100 Watt

Manufacturer Information

Brand
Lithonia Lighting
Sub Brand
Contractor Select

General Product Info

12-Digit UPC
196182393266
Color
Bronze
Environment
Outdoor
Environmental Conditions
Outdoor
Finish
Gloss
Fixture Type
FloodLight
Product UPC
19618239326
Shape
Rectangle
Weight
6.48 L

Dimensions

Height
2.84 Inch
Length
16.07 Inch
Width
8.95 in

Certifications and Compliance

Country of Origin
Vietnam,Vietnam
Applications
  • Automotive & Parking
  • Decorative
  • Education
  • Entertainment
  • Food Service
  • Government
  • Hospitality
  • House of Worship
  • Manufacturing
  • Offices & Banks
  • Parking Garage
  • Residential
  • Retail
  • Sports and Recreation
Features
  • DESIGN: The Lithonia Lighting® ESXF LED is the all-in-one floodlight, providing easy access to adjustable lumen output (ALO), tri-level CCT switching, and selectable dusk-to-dawn photocell
  • ENERGY SAVINGS: Energy-efficient LEDs with lumen output of 8500, 10500, and 14000 lumens
  • SELECTABLE: Adjustable Lumen Output, Switchable CCT (3000K, 4000K, 5000K) and Standard Photocell
  • RATINGS: IP66 Rated aluminum housing, DLC Certified, CSA certified to US and Canadian standards
  • VOLTAGE: MVOLT (120-277V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor >90% and THD <20%
  • INTENDED USE: Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources

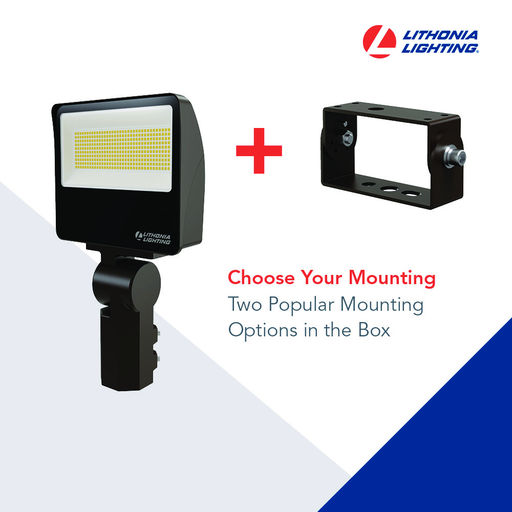

  • INSTALLATION: Include a yoke mount for solid surface mounting and an integral slipfitter that mates with standard 2 3/8\" tenons for pole-top mounting, models ship standard with 18 SO cord
  • CONSTRUCTION: Sealed die-cast aluminum body and IP66 listed to withstand moisture and the elements
  • WARRANTY: Five-year limited warranty
  • DIMENSIONS: 7.97 in. x 8.95 in. x 3.04 in.
  • Ideal for parking areas, street lighting, walkways and car lots
Standards
  • C-UL-USDLC Premium
