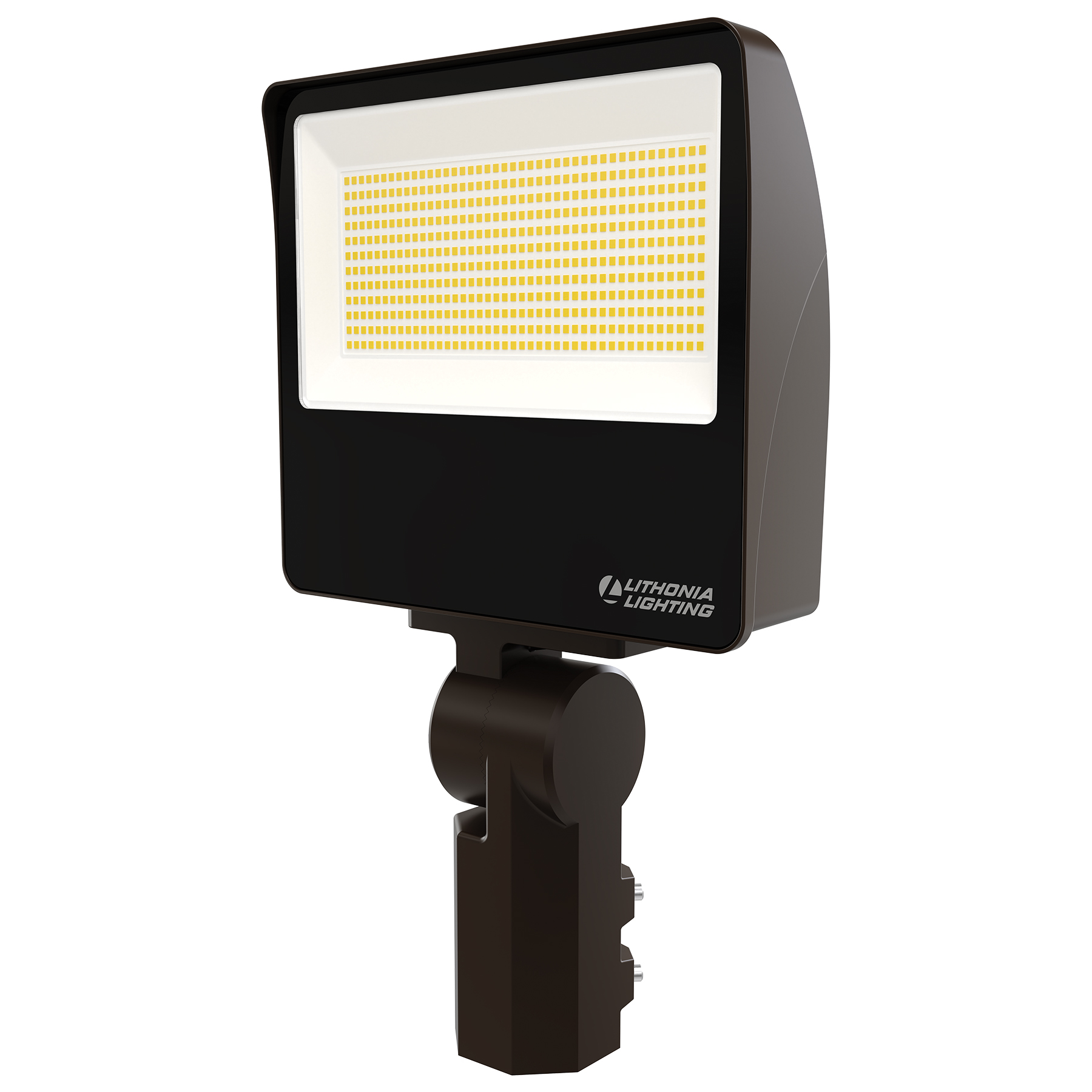

Lithonia ESXF4-ALO-SWW2-YS-DDB-M2 150W LED Floodlight, Selectable Lumens 16,000 - 20,000, Switchable CCT 3K/4K/5K, 120V-277V, Dusk-Dawn, Yoke & SlipFitter Mount - Bronze

Manufacturer: Lithonia Lighting | Catalog # ESXF4-ALO-SWW2-YS-DDB-M2 | Codale Part # 4393989
$376.84/ea
ea
Log in or register to view your price, purchase history, and more!
39 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
ESXF4, Adjustable light output, Switchable CCT- 3000K, 4000K, and 5000K, 120-347V, YS, Dark bronze finish

Technical Information

Applications
Automotive & Parking,Decorative,Education,Entertainment,Food Service,Government,Healthcare,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Parking Garage,Residential,Retail
Average Rated Life
50,000 hr
Color Rendering Index
80
Dimmable?
Yes
Lamp Type
LED
Lumens
15, 500 Lumen
Material
Aluminum
Mounting Type
Tenon Slipfitter,Yoke
Number of Lamps
1
Power Rating
150 W
Size
17.66 x 10.54 x 3.12 IN
Style
Contemporary
Type
Floodlight
Voltage
120 Volt
Wattage
150 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
196182393280
Color
Bronze
Environment
Outdoor
Environmental Conditions
Outdoor
Finish
Gloss
Fixture Type
FloodLight
Product UPC
19618239328
Shape
Rectangle
Weight
11.0900 lb

Dimensions

Height
3.12 Inch
Length
17.66 Inch
Width
10.54 in

Certifications and Compliance

Country of Origin
Vietnam,Vietnam
Applications
  • Automotive & Parking
  • Decorative
  • Education
  • Entertainment
  • Food Service
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Manufacturing
  • Offices & Banks
  • Parking Garage
  • Residential
  • Retail
Features
  • DESIGN: The Lithonia Lighting® ESXF LED is the all-in-one floodlight, providing easy access to adjustable lumen output (ALO), tri-level CCT switching, and selectable dusk-to-dawn photocell
  • ENERGY SAVINGS: Energy-efficient LEDs with lumen output of 16000, 18000, and 20000 lumens
  • SELECTABLE: Adjustable Lumen Output, Switchable CCT (3000K, 4000K, 5000K) and Standard Photocell
  • RATINGS: IP66 Rated aluminum housing, DLC Certified, CSA certified to US and Canadian standards
  • VOLTAGE: MVOLT (120-277V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor >90% and THD <20%
  • INTENDED USE: Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources
  • INSTALLATION: Include a yoke mount for solid surface mounting and an integral slipfitter that mates with standard 2 3/8\" tenons for pole-top mounting, models ship standard with 18 SO cord
  • CONSTRUCTION: Sealed die-cast aluminum body and IP66 listed to withstand moisture and the elements
  • WARRANTY: Five-year limited warranty

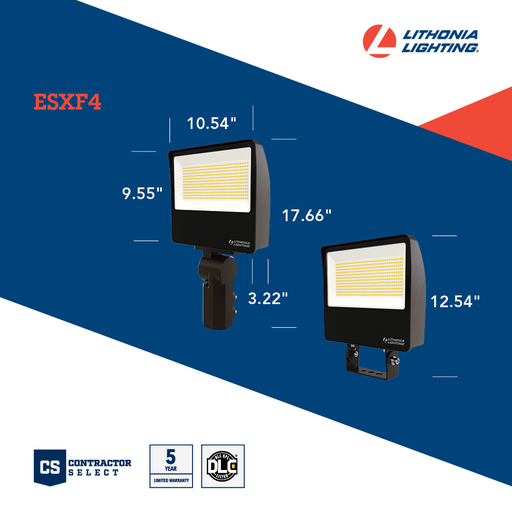

  • DIMENSIONS: 9.55 in. x 10.54 in. x 3.22 in.
  • Ideal for parking areas, street lighting, walkways and car lots
Standards
  • C-UL-USDLC Premium
