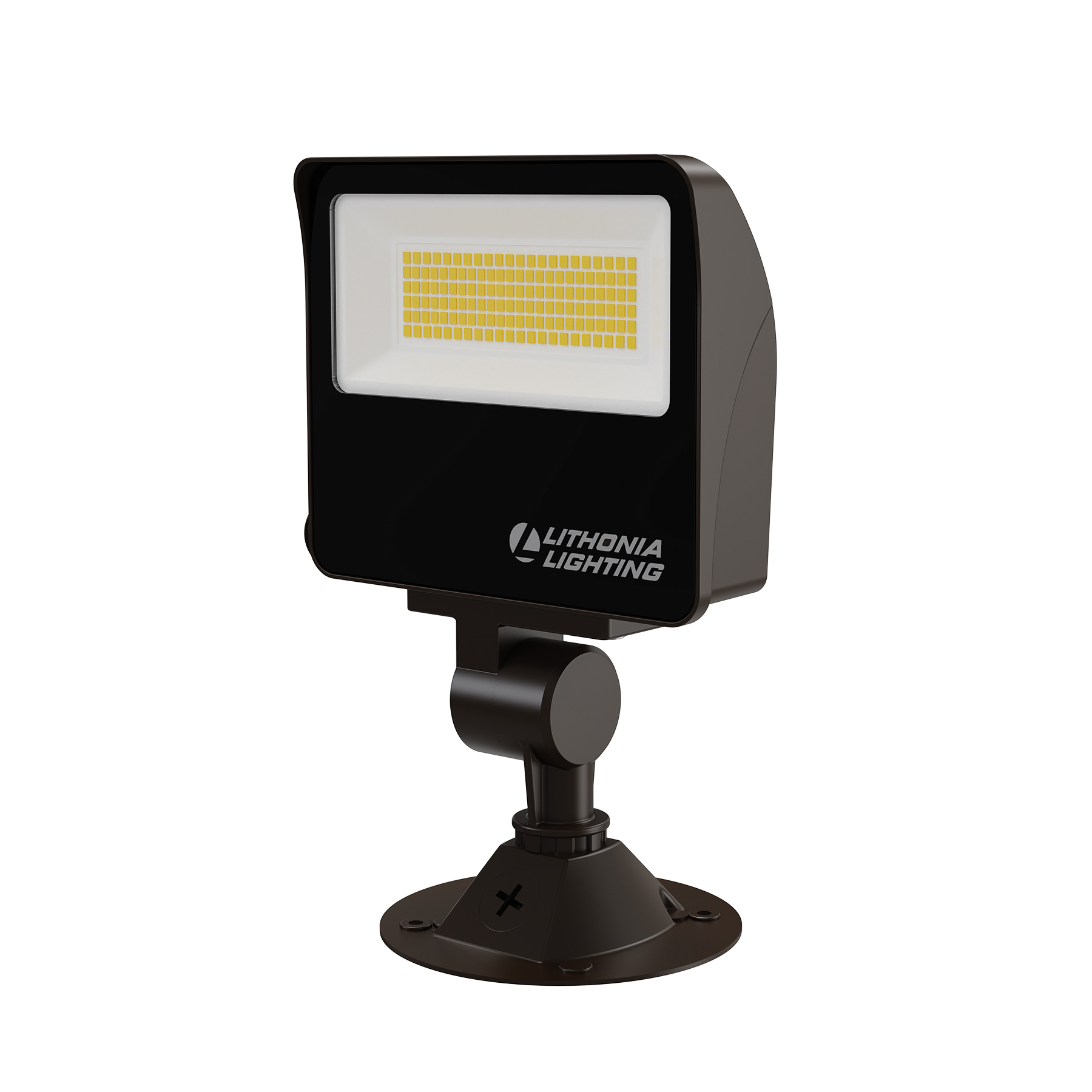

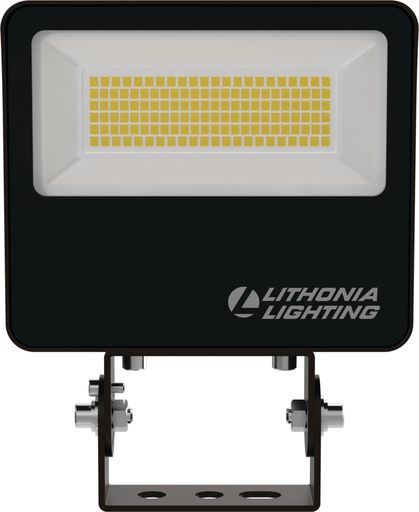

Lithonia ESXF1-ALO-SWW2-KY-DDB-M2 34W LED Floodlight, Selectable Lumens 1500 - 5000, Switchable CCT 3K/4K/5K, 120V-277V, Photocell, Knuckle & Yoke, Mounting Plate - Bronze

Manufacturer: Lithonia Lighting | Catalog # ESXF1-ALO-SWW2-KY-DDB-M2 | Codale Part # 4394041
$98.28/ea
ea
Log in or register to view your price, purchase history, and more!
17 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
The Lithonia Lighting ESXF LED all-in-one floodlight gives you the precise illumination you want, whenever and wherever. ESXF delivers easy access to adjustable lumen output, color switching, and a selectable photocell, so you always have the luminaire you need on the spot.

Technical Information

Applications
Automotive & Parking,Decorative,Education,Entertainment,Food Service,Government,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Parking Garage,Residential,Retail,Sports And Recreation
Average Rated Life
50,000 hr
Color Rendering Index
80
Color Temperature
3000 K
Correlated Color Temp
3000 K
Dimmable?
Yes
Lamp Type
LED
Lumens
5,000 Lumen
Material
Aluminum
Mounting Type
Knuckle,Yoke
Number of Lamps
Not Applicable
Power Rating
34
Power Source
Hardwired
Size
7.65 x 6.04 x 1.86 IN
Standard
C-UL-USDLC Premium
Style
Contemporary
Type
Floodlight
Voltage
120 Volt
Wattage
34 Watt

Manufacturer Information

Brand
Lithonia Lighting
Sub Brand
Contractor Select

General Product Info

12-Digit UPC
196182393204
Color
Bronze
Environment
Outdoor
Environmental Conditions
Outdoor
Finish
Gloss
Product Type
Floodlight
Product UPC
19618239320
Shape
Rectangle
Weight
2.31 L

Dimensions

Height
1.86 Inch
Length
7.65 Inch
Warranty Length
5 yr
Width
6.04 in

Certifications and Compliance

Country of Origin
Vietnam
Features
  • DESIGN: The Lithonia Lighting® ESXF LED is the all-in-one floodlight, providing easy access to adjustable lumen output (ALO), tri-level CCT switching, and selectable dusk-to-dawn photocell
  • ENERGY SAVINGS: Energy-efficient LEDs with a lumen output of 1500, 3000, and 5000 lumens
  • SELECTABLE: Adjustable Lumen Output, Switchable CCT (3000K, 4000K, 5000K) and Standard Photocell
  • RATINGS: IP66 Rated aluminum housing, DLC Certified, CSA certified to US and Canadian standards
  • VOLTAGE: MVOLT (120-277V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor >90% and THD <20%
  • INTENDED USE: Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources
  • INSTALLATION: Ships with NPT threaded knuckle mount factory installed and can be mounted to conduit bodies or to 4\" electrical boxes using the provided round mounting plate, included yoke mounts can be easily changed in the field
  • CONSTRUCTION: Sealed die-cast aluminum body and IP66 listed to withstand moisture and the elements
  • WARRANTY: Five-year limited warranty
Application
  • Automotive & Parking
  • Decorative
  • Education
  • Entertainment
  • Food Service
  • Government
  • Hospitality
  • House of Worship
  • Manufacturing
  • Offices & Banks
  • Parking Garage
  • Residential
  • Retail
  • Sports and Recreation
Mounting
  • Knuckle
  • Yoke
Standard
  • C-UL-USDLC Premium
