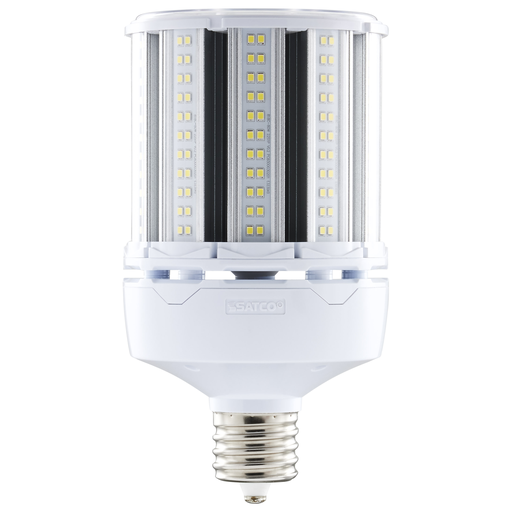

Satco S49395 80 Watt LED HID Replacement; 5000K; Extended Mogul base; Type B Ballast Bypass; Economy Hi-Pro

Manufacturer: SATCO Lighting | Catalog # S49395 | Codale Part # 4394257
$161.30 /ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
80 Watt LED HID Replacement - 5000K - Extended Mogul Base - Type B Ballast Bypass - Economy Hi-Pro

Technical Information

Amperage
0.800-0.289 Amp
Average Rated Life
35000 hr
Beam Spread
300
Color Temperature
Natural Light
Correlated Color Temp
5000 K
Dimmable?
No
Incandescent Equivalent
400 W
Indoor Outdoor
Indoor,Outdoor
IP Rating
IP65
Lens Color
Clear
Lens Material
Polycarbonate
Lumens
11,040 Lumen
Material
Aluminum,Polycarbonate
Operating Temperature
-22 degrees F
Power Factor
0.9
Technology Type
LED
Type
LED HID
Voltage
100 Volt
Wattage
80 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923493959
Finish
White
Housing Color
White
Product UPC
04592349395
Weight
3 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
Malaysia
Features
  • High lumen per watt ratio
  • Superior LED light output
  • Rated for use in enclosed fixtures
  • Advanced thermal management
  • Suitable for use in damp locations
  • Up to 35000 Hours of use
  • 4kV built-in surge protection
  • Safety cable provided with S49395, S49396, S49397, S49675, S49676, S49677 ONLY and is required upon installation of these high bay, base-up applications. (Please See Instructions)
Replaced By Products
  • S29395
  • S39395
  • S9395
Ballasting Requirements
  • Ballast Bypass
Includes
  • Safety Cable
Installation Notes
  • Not for use in vapor tight fixtures.
