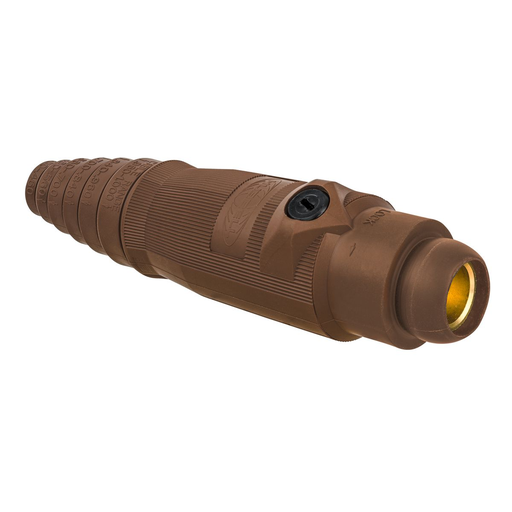

Hubbell HBL18400FBN SING POL, SER 18, 400A FeMale PL, BROWN

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL18400FBN | Codale Part # 4394501
$80.00/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
High Ampacity Products, Single Pole,Series 18, Female Plug, 400A 600V AC/DC Max, Brown

Technical Information

Amperage
400 Amp
Applications
High Powered Connections
Conductor Size
4-4/0 AWG
Cord Type
SC/PPC Cable
Current
400 Amp
Material
Composite
Number of Poles
1 Pole
Number of Wires
1 Wire
Size
Standard Sized
Style
Female
Tc Connection
Terminal
Type
Plugs
Voltage
250//600 VDC//VAC
Wattage
Single
Wire Size
4-0000 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Series 18 Female Plug

General Product Info

12-Digit UPC
783585539560
Color
Brown
Environmental Conditions
Indoor Dry unless protected by additional means
Product UPC
78358553956
Weight
0.6000 lb

Dimensions

Height
1.8 Inch
Length
9 Inch
Width
7.5 in

Certifications and Compliance

Country of Origin
USA
Features
  • Extra Long non-conductive inner sleeve
  • Turn and Lock Symbol aids in the mating of devices
  • Easily Identifiable Cable with cut off points for secure fit
