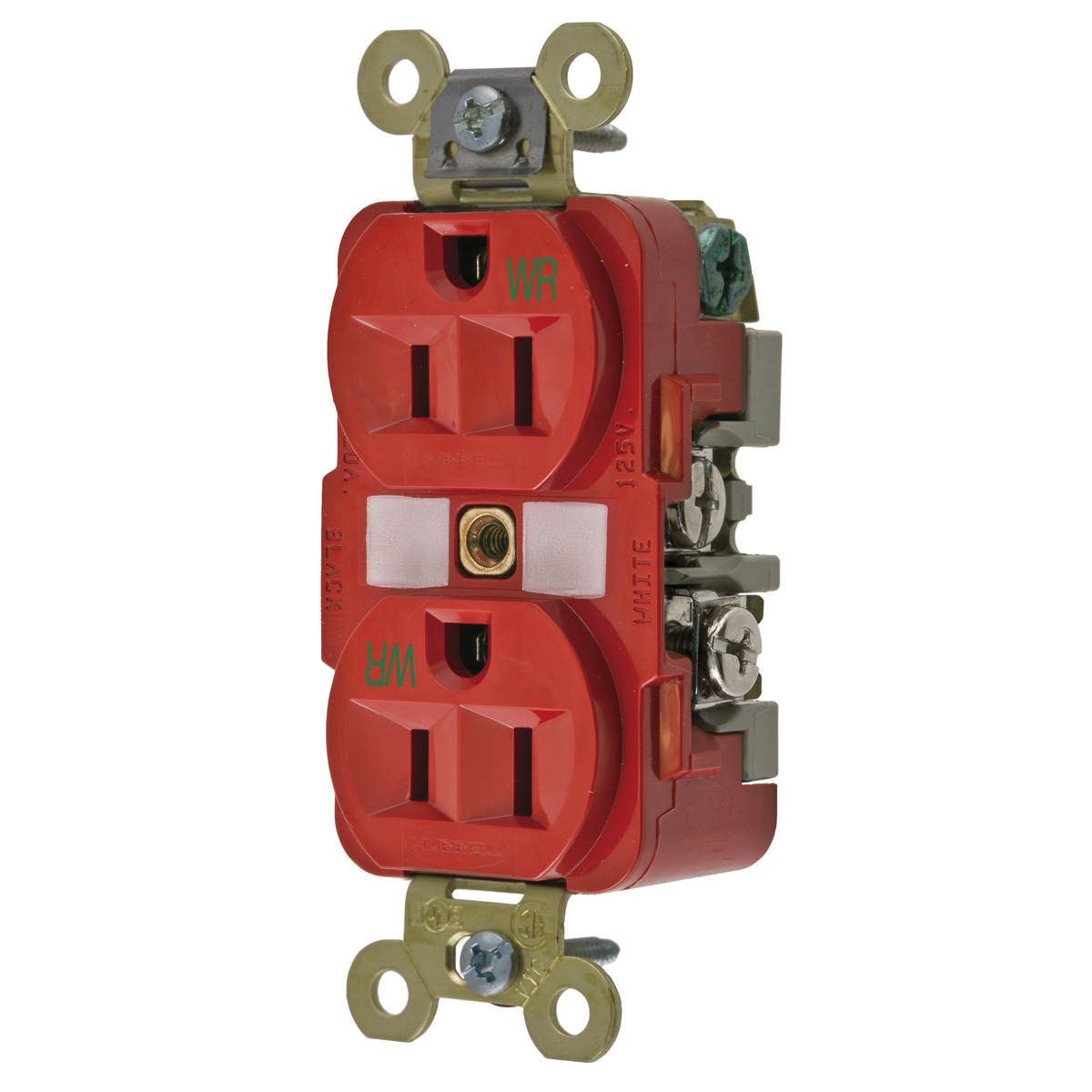

Hubbell HBL5262RWR WR Receptacle, DUP, SB, HD SPEC, 15A 125V, RD

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5262RWR | Codale Part # 4397054
$49.14/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Weather-Resistant Duplex, Industrial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Red, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty
Base Material
PBT
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Contact Material
Brass
Current
15 Amp
Dielectric Strength
2000 V
Face Material
Nylon
Grade
Industrial
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Finder Groove Face
Tc Connection
Back & Side Wired
Type
Weather-Resistant
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade and Twist-Lock

General Product Info

12-Digit UPC
783585320526
Color
Red
Environmental Conditions
Weather-Resistant
Product Series
Extra Heavy Duty
Product UPC
78358532052
Weight
0.25 lb

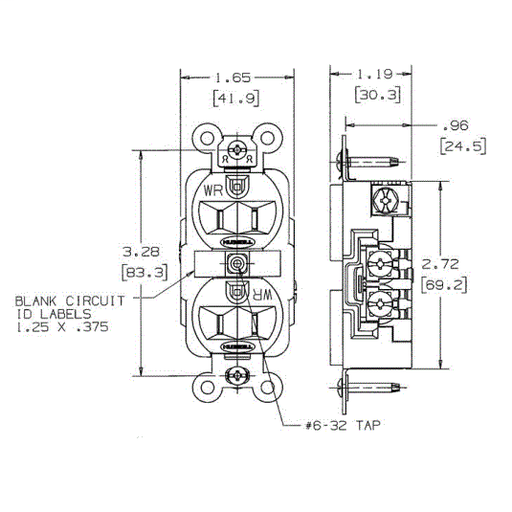

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.65 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Weather-resistance complies with national electrical code requirements
  • Finder Groove Face
  • One-piece brass integral ground strap
  • Deep body design with circuit ID face
  • Weather Resistant- Self Grounding
