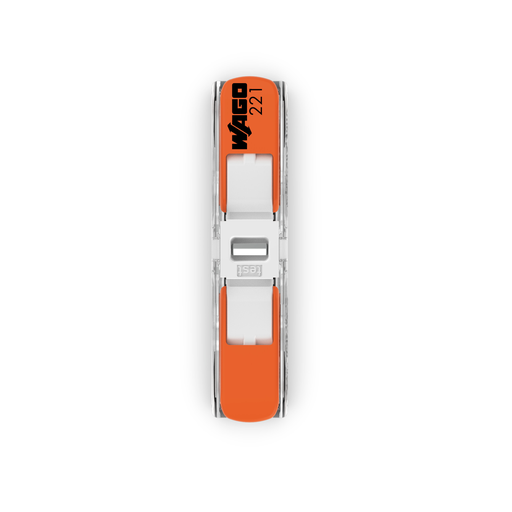

Wago 221-2401 2-Conductor #12-20 AWG Inline Splicing Connector w/Lever, Clear w/White Cover
(Sold per ea, 60 per Box)

Manufacturer: Wago Wire Connectors | Catalog # 221-2401 | Codale Part # 4397388
$43.73/e
ea
Log in or register to view your price, purchase history, and more!
84 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Inline splicing connector with lever for all conductor types; 12 AWG (max.); 2-conductor; transparent housing; white cover; Surrounding air temperature: max 85.C (T85); 4,00 mm.; transparent. This connector is 12 AWG capable and ideal for installations in the North American market. Inline connection of solid, stranded and fine-stranded conductors from 0.2 to 4 mm. (24-16 AWG). Slim design saves space in tight areas. Tool-free connection and disconnection thanks to convenient lever technology. Use a mounting carrier for fixed and multi-pole wiring.

Technical Information

Actuator
Lever
Amperage
32 Amp
Conductor Material
Copper
Conductor Size
12 AWG
Contact Material
Copper
Current
32 Amp
Flamability Class
V2
Insulation Material
Polycarbonate
Operating Temperature
105 degrees C
Strip Length
0.43 in
Temperature Rating
105 degrees C
Type
In-Line

Manufacturer Information

Brand
Wago

General Product Info

12-Digit UPC
066966120510
Color
Transparent
Product UPC
05514406761
Weight
2.373 g

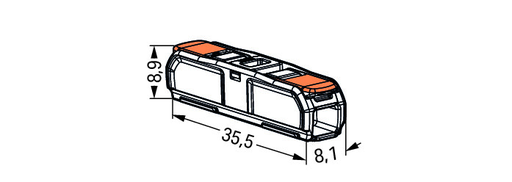

Dimensions

Depth
1.398 Inch
Height
0.35 Inch
Width
0.319 in

Certifications and Compliance

Country of Origin
Germany
Approvals
  • DEKRA Certification B.V., ENEC 05, 71-113253 REV.1, EN 60998
  • DEKRA Certification B.V., CCA, NTR NL-7827, EN 60998
  • Lloyds Register, LR, LR22207029TA, EN 60998
  • Underwriters Laboratories Inc., UL, E69654, UL 486C
Features
  • Inline connection of solid, stranded and fine-stranded conductors from 0.2 to 4 mm² (2416 AWG)
  • Slim design saves space in tight areas
  • Tool-free connection and disconnection thanks to convenient lever technology
  • Use a mounting carrier for fixed and multi-pole wiring
Accessory Products
  • 207-1372
  • 207-1373
  • 207-1375
  • 209-120
  • 209-123
  • 209-1115
  • 209-1116
  • 210-834
  • 221-2501
  • 221-2502
  • 221-2503
  • 221-2504
  • 221-2505
  • 221-2511
  • 221-2512
  • 221-2513
  • 221-2514
  • 221-2515
  • 221-2521
  • 221-2522
  • 221-2523
  • 221-2524
  • 221-2525
  • 221-2531
  • 221-2532
  • 221-2533
  • 221-2534
  • 221-2535
