Burndy QP10F25X03D Brass Female Quick Disconnect, 10-12 AWG, Vinyl Insulated, Tin Plated

Manufacturer: Hubbell-Burndy | Catalog # QP10F25X03D | Codale Part # 4397496
$162.24/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Brass Female Quick Disconnect, 10-12 AWG, Vinyl Insulated, Tin Plated

Technical Information

Applications
Quickly Connecting or Disconnecting a Terminal
Barrel Type
Butted Seam
Conductor Size
12-10 AWG
Conductor Type
CU C Str-Size
Connection Type
Female Quick Disconnect
Insulation Material
PVC
Insulation Type
Vinyl
Material
Brass
Max Voltage
600 V
Plated?
Yes
Plating Type
Tin
Standard
3R,C22.2 No. 0.4,C22.2 No. 18,C22.2 No. 94 Enclosures Types 1,UL 514C,UL467,UL50 Enclosures Types 1
Strip Length
3/8 in
Tab Size
1/4 x 0.032 in
Tc Connection
Female
Temperature Rating
105 degrees C
Type
E1 Plus Solid State Relay
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
Burndy
Sub Brand
Fingrip™

General Product Info

12-Digit UPC
781810293577
Finish
Tin Plated
Weight
0.004 lb

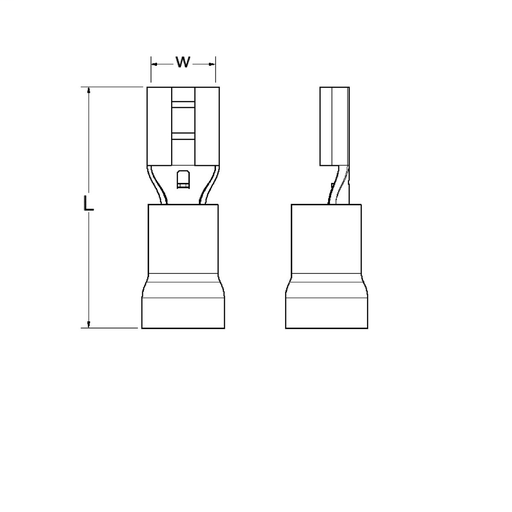

Dimensions

Height
0.26 Inch
Length
0.97 Inch
Overall Length
0.98 in
Width
0.29 in

Certifications and Compliance

Country of Origin
Taiwan
CSA
No
Features
  • Sleeved barrel
  • Insulated connector eliminate the need for post installation insulation
  • Funnel entry barrrel opening assures quick and easy wire insertion
  • Dimpled female socket detent ensures firm grip
