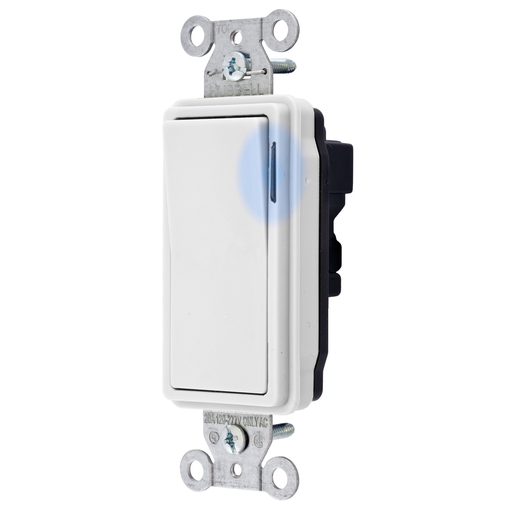

Product image for Hubbell SNAP2101ILWNA SWITCH, SNAP, DECSP, IL, 15A120/277, WH, NA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell SNAP2101ILWNA SWITCH, SNAP, DECSP, IL, 15A120/277, WH, NA

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP2101ILWNA | Codale Part # 4399850
$45.26/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Decorator Switches, Illuminated Single Pole, 15A 120/277V AC, White, North American

Technical Information

Action
Positive Snap
Actuator
Rocker
Amperage
15 Amp
Applications
Illuminated
Base Material
Thermoplastic
Contact Configuration
2 Position
Contact Material
Silver Alloy
Contact Rating
Per UL 20
Current
15 Amp
Enclosure
None
Flamability Class
UL 94V-2
Indicator
True
Material
Thermoplastic
Max Current
15 A
Max Voltage
277 V
Number of Poles
1 Pole
Operating Cycles
50,000 Cycles
Operating Temperature
-40 degrees C
Size
4.28 in x 1.44 in x 1.54 in
Standard
UL
Style
Single Pole
Tc Connection
Connectorized
Type
Non-Reversing
Voltage
120-277 Volt
Wattage
5540 Watt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
AC Decorator Switches

General Product Info

12-Digit UPC
783585186252
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
Product UPC
78358518625
Weight
0.1500 lb

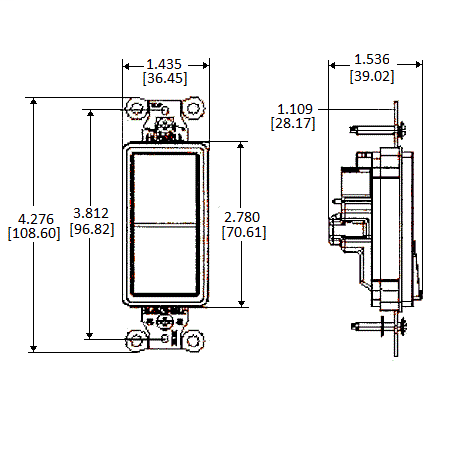

Dimensions

Height
1.54 Inch
Length
4.28 Inch
Width
1.44 in

Certifications and Compliance

Country of Origin
USA
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 15A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Features
  • Steel, zinc plated bridge is corrosion resistant
  • Thread cleaning captive mounting screw
  • SNAP Connect, Self-grounding, LED Indicator
  • Self-grounding staple assures continuity to wall box
