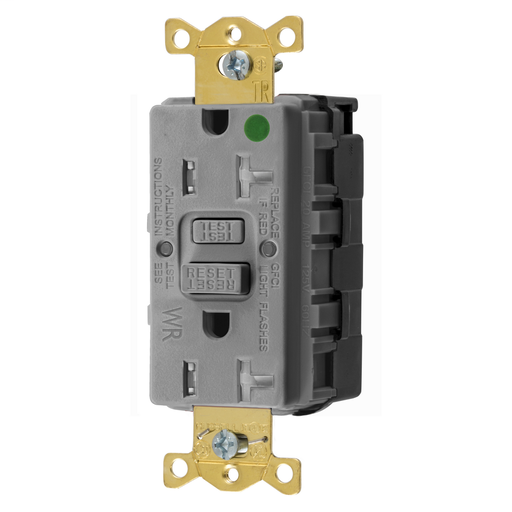

Product image for Hubbell GFTWRST83SNAPGY20A COMM HG SELF TEST TRWR SNAP GFR GRAY
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell GFTWRST83SNAPGY20A COMM HG SELF TEST TRWR SNAP GFR GRAY

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # GFTWRST83SNAPGY | Codale Part # 4400571
$110.02/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, SNAPConnect Receptacle, GFCI, Tamper and Weather Resistant, Commercial Hospital Grade, Self Test, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Gray

Technical Information

Amperage
20 Amp
Applications
For Commercial Use
Conductor Size
14-12 AWG
Connection Type
Connectorized
Current
20 Amp
Grade
Hospital
Grounding
Self
Horsepower
1 hp
Material
Nylon
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard
Standard
NEC®
Style
Standard
Tc Connection
Connectorized
Type
Decorator, Tamper and Weather Resistant
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
SnapConnect®

General Product Info

12-Digit UPC
783585486482
Color
Gray
Environmental Conditions
Weather Resistant
Product UPC
78358548648
Weight
0.3500 lb

Dimensions

Height
1.47 Inch
Length
3.28 Inch
Width
1.77 in

Certifications and Compliance

Country of Origin
China
Features
  • Audible SNAP, indicates solid connection
  • SNAPConnect, Weather and Tamper-Resistant, Style Line, AUTOGUARD, Self test GFCI receptacle
  • Patented shutter design for tamper-resistant protection
  • Meets NEC requirements for TR (517-18c) and WR (406.9), UV and corrosion resistance for harsh and damp applications
  • Patented AUTOGUARD® self test technology
  • Protects against line and load reversal, no power to the face or downstream if device is miswired
