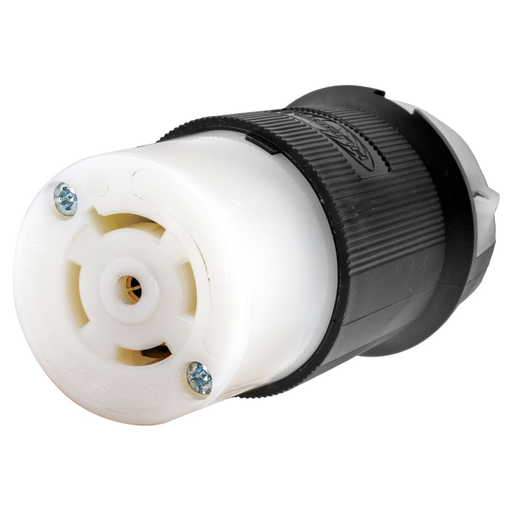

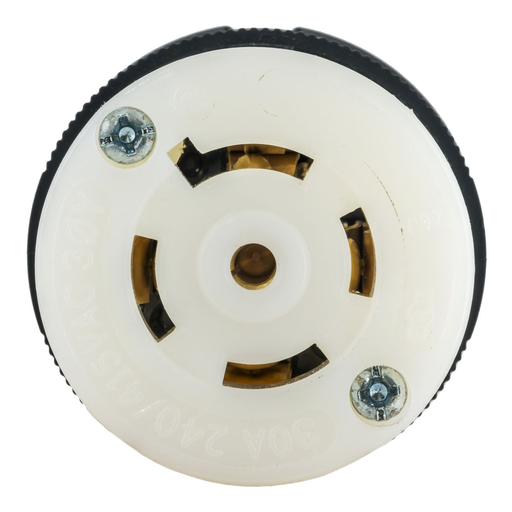

HWDK HBL2803 LKG CONN, 30A 240/415

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2803 | Codale Part # 4404489
$183.13/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®,Insulgrip® Connector, 30A, 4 Pole, 5 Wire Grounding, 240/415 VAC, 3 Phase Y, NEMA L26-30R, Black and white Nylon

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Conductor Size
16-8 AWG
Enclosure
Black and White
Material
Nylon
Number of Conductors
5-Wire Grounding
Number of Poles
4-4 Pole
Number of Wires
5 Wire
Size
2.21 in x 2.21 in x 3.86 in
Tc Connection
Terminal Screws
Temperature Rating
Maximum Continuous: 75?degrees C; Minimum Continuo
Type
Connector Body
Voltage
240/415V AV
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock Devices

General Product Info

12-Digit UPC
783585580333
Color
Black/White
Environmental Conditions
Indoor Dry unless protected by additional means
Product UPC
78358558033
Weight
0.4500 lb

Dimensions

Height
3.86 Inch
Length
2.21 Inch
Width
2.21 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Clear, funnel shaped wire entry for ease of termination
  • Integral, dust shield protects wiring chamber from dust or contaminants.
