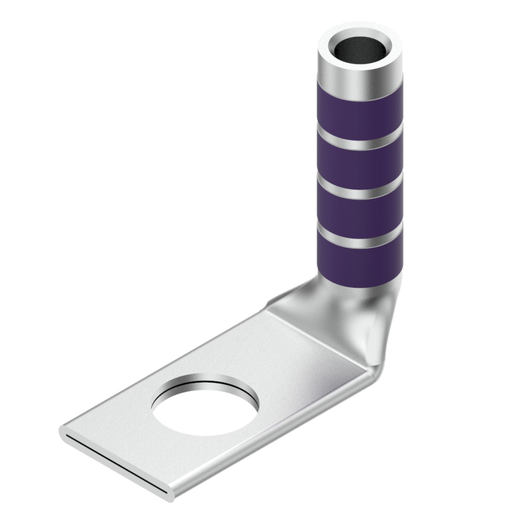

Image thumbnail 1
Image thumbnail 2
Email

Burndy YAZ28TC1290 4/0 AWG CU, One Hole, 1/2 Stud Size, Long Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Purple Color Code, 15 Die Index

Manufacturer: Hubbell-Burndy | Catalog # YAZ28TC1290 | Codale Part # 4405408
$15.53/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Cu Tubing HYLUG™ (One Hole Code); 1 Hole with Inspection Window; 4/0 AWG Code,200 Navy; 600V-35kV; 1/2" stud; Long; Compression;Purple

Technical Information

Color Coding
Purple
Conductor Material
Copper
Conductor Size
4/0 AWG
Connection Type
Screw
Material
Copper
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin - Electro Plated

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810240144
Finish
Tin Plated
Product UPC
78181024014

Dimensions

Height
2.36 Inch
Hole Size
13.5 mm
Length
1.54 Inch
Overall Length
39 mm

Certifications and Compliance

Country of Origin
USA
CSA
Yes
Features
  • Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands
  • Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
  • Connectors are clearly marked with stamping and barrel color coding
