PAN UTP6AX5 Cat 6A 24 AWG UTP Coppe

Manufacturer: Panduit | Catalog # UTP6AX5 | Codale Part # 4405612
$63.63/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet

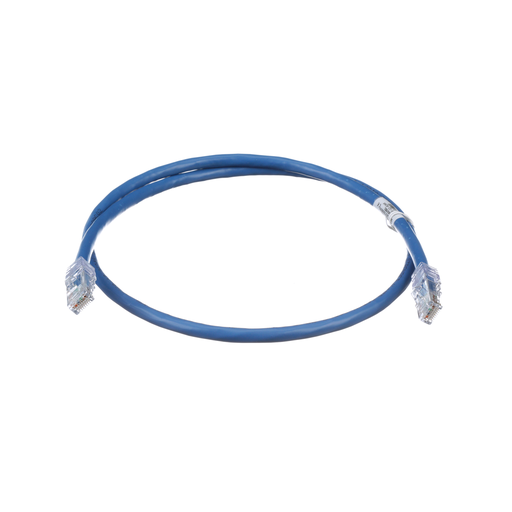

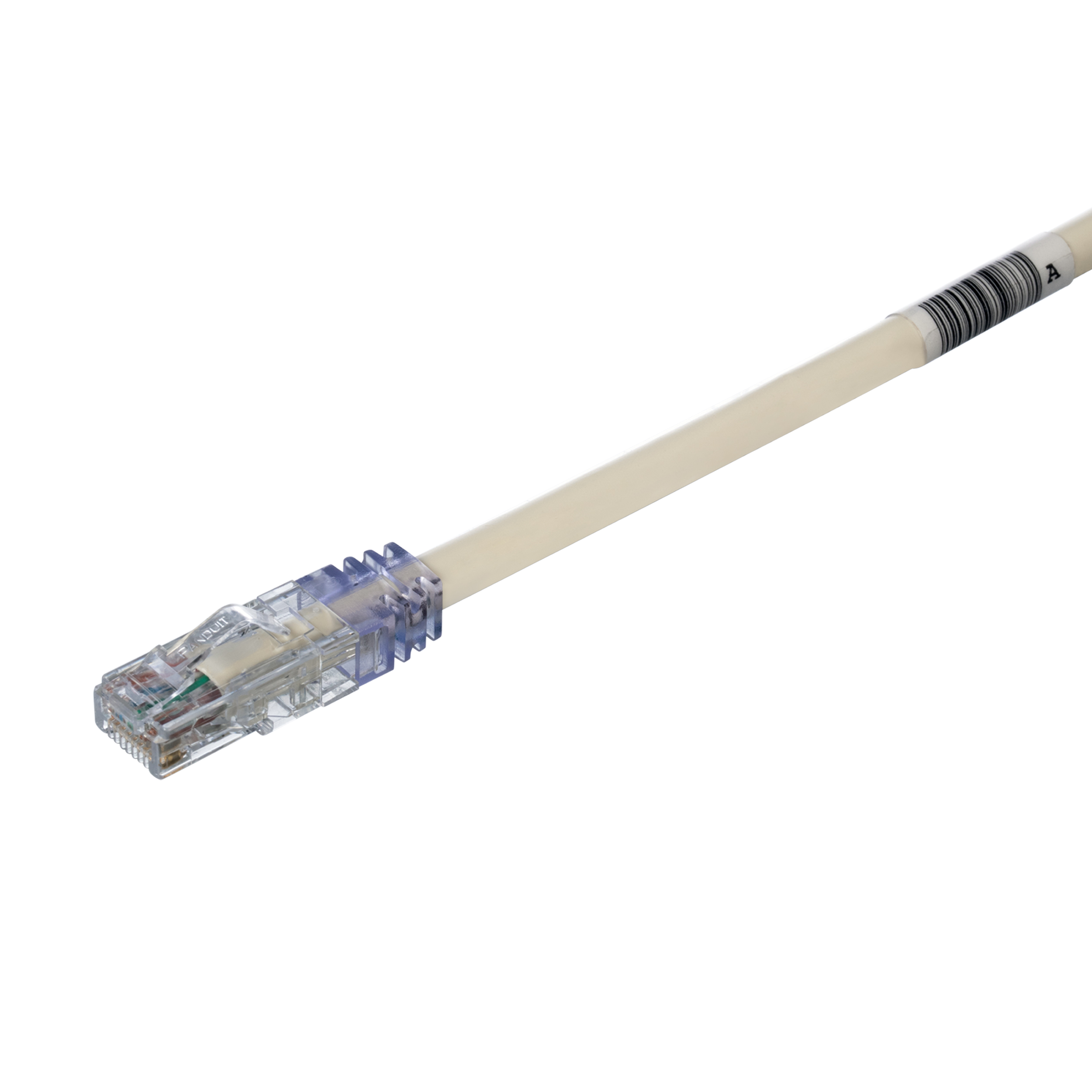

The TX6A™ 10Gig UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, solid, CM cable with enhanced performance modular plugs. The patch cord offers a small 0.250 inch (6.4mm) cable diameter. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord.s slender strain relief boot provides easy access in high-density applications. The patch cord is 5 feet and white.

Technical Information

Applications
(1) 10GBASE-T Ethernet, (2) Data Center I/O Consolidation, (3) Data Center Server Virtualization, (4) Backbone Aggregation, (5) Parallel Processing and High Speed Computing
Boot Color
Clear
Cable Type
24 AWG UTP Solid
Conductor Type
Solid
Material
Copper
Max Operating Temperature
140 degrees F
Min Operating Temperature
14 degrees F
Performance Level
Category 6
Temperature Rating
-10 to 140 degrees F
Type
10 Gig, Category 6A

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet, TX6A™

General Product Info

12-Digit UPC
613056769991
Color
Clear/White
Jacket Material
PVC
Product UPC
61305676999
Weight
0.1900 lb

Dimensions

Cable Length
5 ft
Outside Diameter
NA In.
Overall Length
5 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania

Certifications & Compliance

Prop 65 Warning
N
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
Prop 65
  • N
