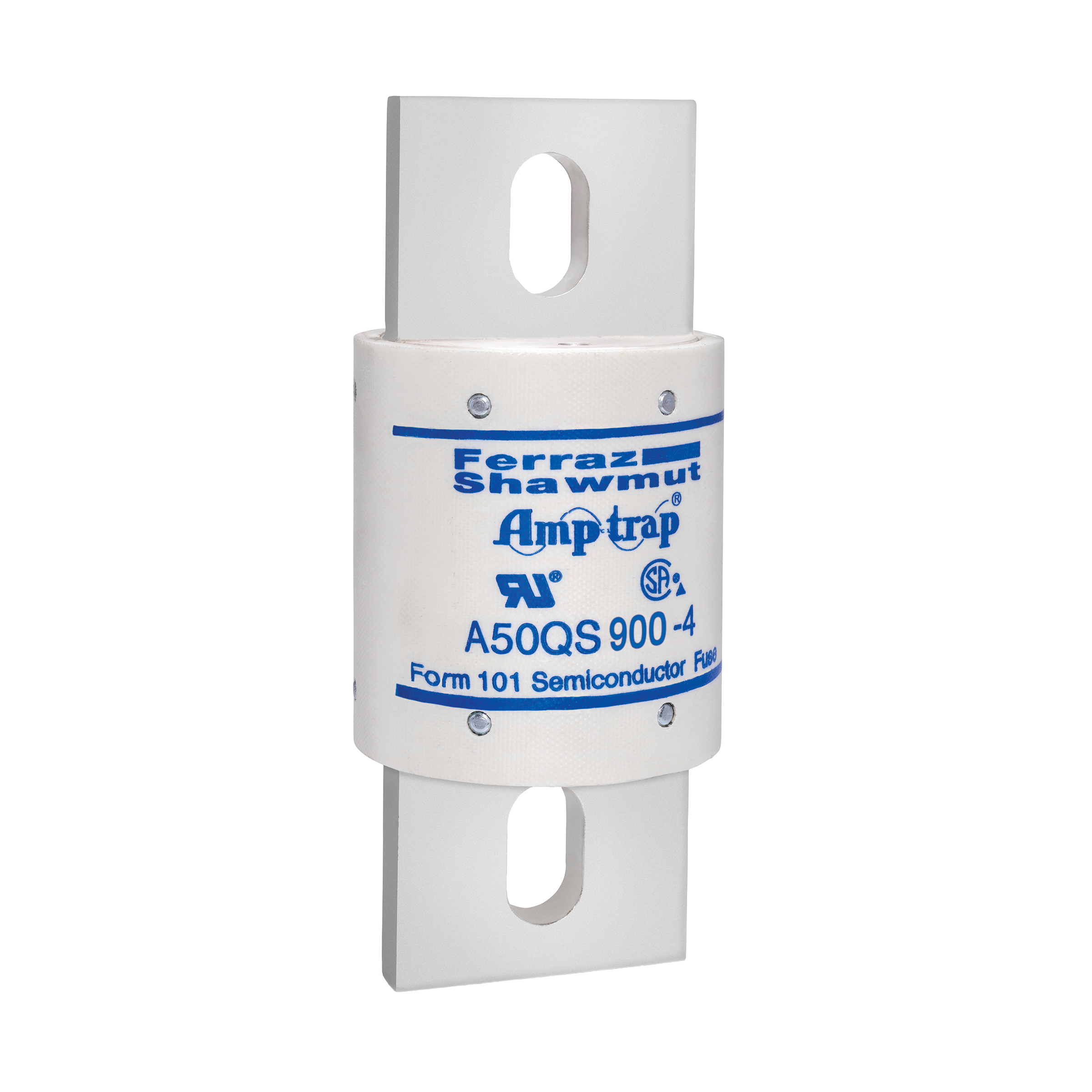

Mersen A50QS900-4 High Speed Fuse A

Manufacturer: Mersen | Catalog # A50QS900-4 | Codale Part # 4405915
$930.64/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
A50QS Amp-Trap® Form 101 fuses grew out of the need to improve the overall performance of semiconductor fuses in response to new equipment requirements. The A50QS encompasses the best protection features . lower I2t to provide better protection for equipment, longer life when subjected to cyclic loading and lower watts loss. A50QS is today.s best choice for the protection of dynamic solid state equipment such as motor drives, inverters, UPS, etc.

Technical Information

Amperage
900 Amp
Applications
Protection of 500 V or Less Motor Drives, UPS, Inverters, etc
Insulation Material
GMG
Max Operating Temperature
80 degrees C
Mounting Type
Bolted
Rated Voltage AC
500 V
Rated Voltage DC
500 V
Standard
CSA,E2186,UL
Tc Connection
Blade
Terminal Material
Silver-Plated Copper
Terminal Type
Blade
Type
P Style, North American
Voltage
500 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001142322
Product UPC
782001142322
Weight
4.8 lb

Dimensions

Diameter
2.88 Inch
Length
6.97 Inch

Certifications and Compliance

Country of Origin
Mexico
Features
  • Lowest I2t for greatest protection of semiconductor circuits
  • Low watts loss for cooler operation
  • Superior cycling ability gives an equipment design advantage
  • State-of-the-art protection for 500V equipment
  • Ultra compact sizes allow down-sizing of existing equipment
Certifications
  • UL recognized component UL File 60314
  • AC: UL guide no. JFHR2
  • DC Tested to UL standard 198L parameters (70-1200A)
  • CSA Certified LR12636
