KLEIN VDV826-705 PASS-THRU MODULAR DATA PLUGS RJ45-CAT6A SHIELDED (STP) 50-PACK

Manufacturer: Klein Tools | Catalog # VDV826-705 | Codale Part # 4406014
$96.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

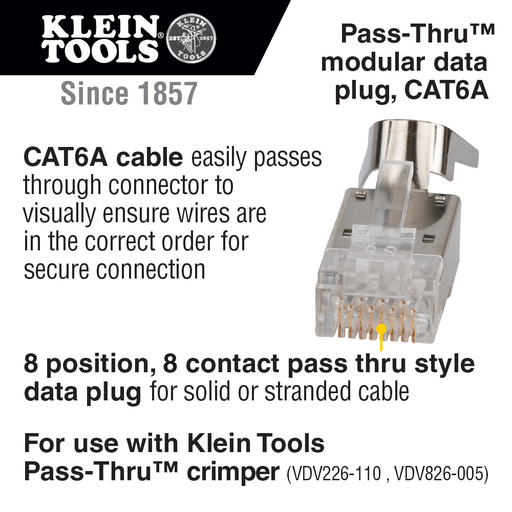

Exclusive Klein-designed CAT6A Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. CAT6A shielded cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper Cat. No. VDV226-110, and eliminates wasted materials.

Technical Information

Cable Type
Category 6A
Material
PVC
Number of Positions
8

Manufacturer Information

Brand
Klein Tools, Inc.
Sub Brand
Pass-Thru™

General Product Info

12-Digit UPC
092644583919
Color
Clear
Finish
Gold
Product UPC
09264458391
Weight
0.001 lb

Dimensions

Depth
0.8 Inch
Height
0.6 Inch
Overall Length
0.8 in
Width
0.4 in

Certifications and Compliance

Country of Origin
Taiwan
Features
  • Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
  • For CAT6A shielded cable and larger diameter/thicker jacket CAT6 cable
  • CAT6A cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
  • Fully compliant with Power Over Ethernet (PoE and PoE+) standards
  • Requires pass-through type crimping tool (Cat. No. VDV226-110 recommended)
  • 8 position, 8 contact pass-through type data plugs for solid or stranded wire
  • Category 6A performance per TIA/EIA-568-B.2
  • 50-Pack
  • 50 -inch gold plating on all contact surfaces
  • Max diameter for CAT6A Pass-Thru™ Connectors is 0.043-Inch (1.1 mm)
  • Pass-Thru Technology; Meets All PoE+ Standards
  • Requires pass through type crimping tool (Cat. No. VDV226-110 recommended)
  • 8 position, 8 contact pass through type data plugs for solid or stranded wire
Warnings
  • Do NOT use on energized circuits or cabling systems.
