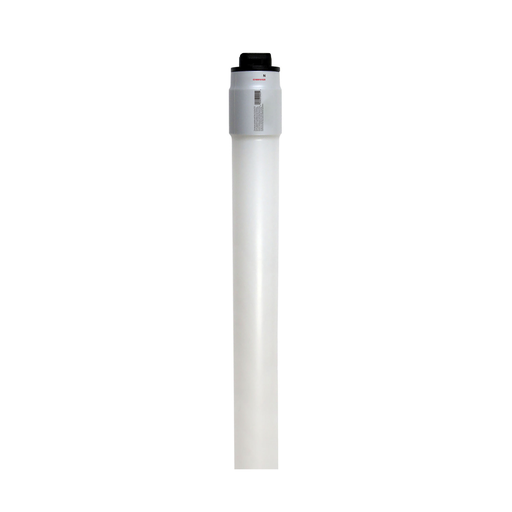

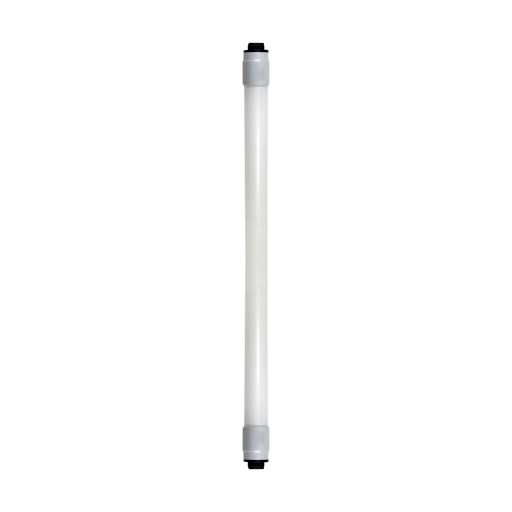

Product image for Satco S29925 40 Watt; 8 Foot; T8 LED; 5000K; Recessed Double Contact base; 50000 Average rated hours; 5500 Lumens; Type B; Ballast Bypass; Double Ended Wiring
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Image thumbnail 11
Image thumbnail 12
Email

Satco S29925 40 Watt; 8 Foot; T8 LED; 5000K; Recessed Double Contact base; 50000 Average rated hours; 5500 Lumens; Type B; Ballast Bypass; Double Ended Wiring

Manufacturer: SATCO Lighting | Catalog # S29925 | Codale Part # 4406111
$37.71/ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
40W 8 ft. T8 LED 50K R17d Base - 50K Average Rated Hours 5500L Type B BBP Double End Wiring

Technical Information

Amperage
0.333-0.144 Amp
Applications
For Indoor
Average Rated Life
50000 hr
Beam Angle
210
Beam Spread
210
Bulb Shape
T8
Color Temperature
5000 K
Correlated Color Temp
5000 K
Dimmable?
No
Incandescent Equivalent
125 W
Indoor Outdoor
Indoor
Lens Color
White
Lumens
5,500 Lumen
Material
Glass
Operating Temperature
-20 degrees C
Power Factor
0.9
Technology Type
LED
Temperature Rating
-20 degrees C
Type
Linear
Voltage
120 Volt
Wattage
40 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923299254
Environmental Conditions
Damp Wet Location Rated
Finish
White
Product UPC
04592329925
Weight
0.88 lb

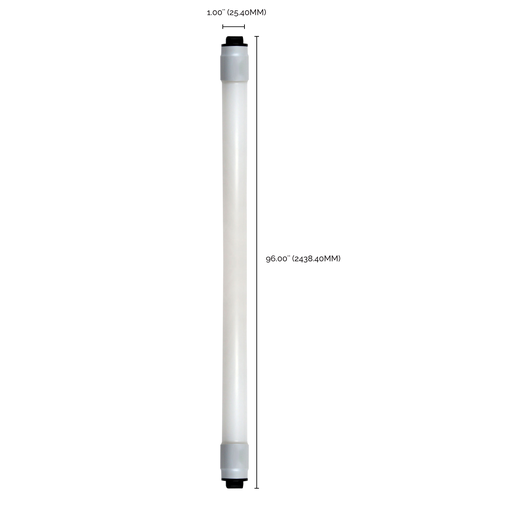

Dimensions

Length
96 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • MOL: 94 inches, MOD: 1 inch
  • Superior 82 CRI light quality, 5500 lumens and a 5000K with a 210 beam spread
  • Rated for enclosed fixtures
  • Damp rated, for use indoor use only
  • 40 watt LED replaces 110 watt fluorescent
  • White finished linear glass bulb
  • LED energy efficient fixture
  • 5 Year Limited Warranty
  • Suitable for Emergency Lighting only with Satco EM Driver #S8002
Ballasting Requirements
  • Ballast Bypass
Installation Notes
  • Not for use in vapor tight fixtures.
Replaced By Products
  • S9925
