Hubbell CSB415LA 15 Amp 120/277 VAC 4-Way Light Almond Toggle Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CSB415LA | Codale Part # 4406776
$25.78/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Four Way, 15A 120/277V AC, Back and Side Wired, Light Almond

Technical Information

Action
DPDT
Actuator
Toggle
Amperage
15 Amp
Applications
Commercial Spec Grade
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
15 Amp
Enclosure
None
Grade
Commercial
Material
Nylon
Number of Poles
2-2 Pole
Operating Cycles
50k
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Four Way
Switch Type
Single Pole
Tc Connection
Back and Side Wired
Type
General Purpose Switches
Voltage
120-277 Volt
Wattage
4.155 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585154015
Color
Almond
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
General Purpose
Product UPC
78358515401
Weight
0.15 lb

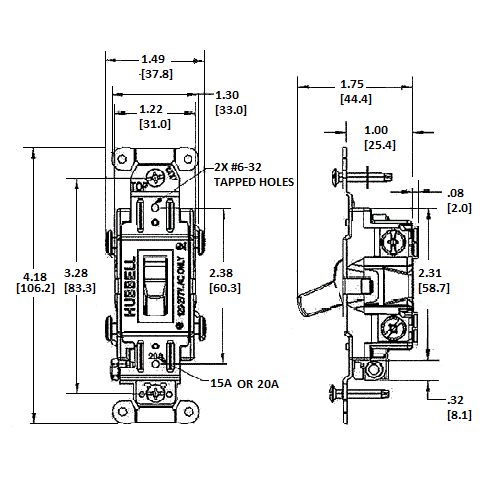

Dimensions

Height
1.83 Inch
Length
4.18 Inch
Width
1.49 in

Certifications and Compliance

Country of Origin
China
Features
  • Thread cleaning captive mounting screw
  • Abuse resistant nylon toggle
  • Steel, zinc plated bridge is corrosion resistant
