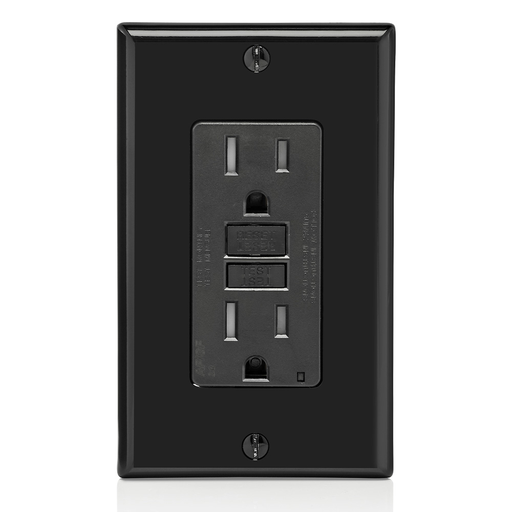

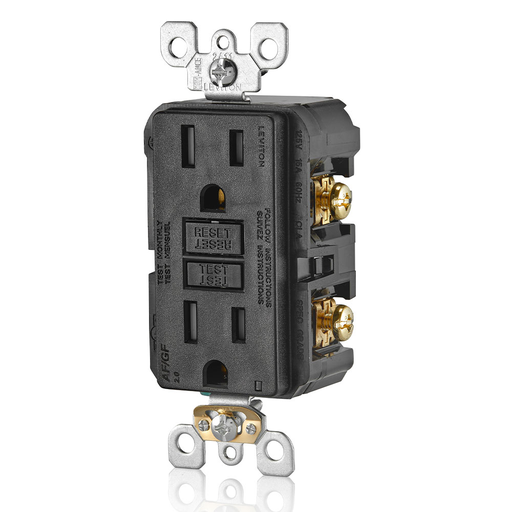

LEV AGTR1-E EB DUAL FUNCT AFCI ST G

Manufacturer: Leviton | Catalog # AGTR1-E | Codale Part # 4406950
$61.16/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
15 Amp, 125 Volt Dual Function AFCI/GFCI Receptacle, 20 Amp Feed-Through, Tamper-Resistant, Monochromatic, back and side wired, nylon wallplate/faceplate, screws and self-grounding clip included . Black

Technical Information

Amperage
15 Amp
Body Material
Polycarbonate,Polycarbonate
Face Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-2 Per UL 94,Rated V-2 Per UL 94
Grounding
Self-Grounding
Horsepower
1 hp
Material
Polycarbonate, Thermoplastic Face
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
66 degrees C
Rated Insulation Voltage
1250 V
Standard
ANSI C-73,CSA,CSA,UL,UL
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Dual Function
Voltage
125 Volt
Wattage
1 hp
Wire Count
3,3

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477744437
Color
Black
Environmental Conditions
UL 94 V-2 Flammability
Product UPC
07847774443
Weight
0.3900 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
China
Features
  • Trip threshold meets or exceeds UL requirements for tripping time on ground faults and on both series and parallel arcs for optimal safety
  • Engineered to meet the latest UL standard for auto-monitoring (self-test); periodically conducts an automatic internal test to confirm that GFCI protected power is available
  • On initial power up, tests the GFCI circuit within 3 seconds
  • Patented Lockout Action prevents reset if the device is damaged
  • Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal for at-a-glance analysis
  • TEST and RESET buttons are readily accessible on the face of the device
  • Improved immunity to high frequency noise reduces nuisance tripping
  • Superior resistance to electrical surges and over-voltages enhancing reliability
  • Patented bridge contact design provides individual sets of contacts for receptacle face and downstream receptacles; no power will be delivered to receptacle face if improperly wired (line-load reversed)
  • One-piece T-design trip latch mechanism provides efficient operation
  • Impact-resistant thermoplastic cover and body for durability
  • Expanded wiring options with nine back-wire holes (two for each line and load connection plus one for ground with an internal clamp) for easy installation
  • Compatible with all Decora® devices and wallplates for multi-gang installation option; available in select popular colors
  • The SmartlockPro® Dual Function AFCI/GFCI Receptacle offers protection both from electrical fires that could result from arc-faults and from electrical shock due to ground faults in one smart device. Through advanced technology, the SmartlockPro Dual Function AFCI/GFCI Receptacle helps protect home and family by working to detect arc-fault and ground fault hazards and, if detected, quickly cuts off power to help avoid a potential fire or shock occurrence. The SmartlockPro Dual Function AFCI/GFCI Receptacle offers a National Electrical Code® (NEC®) compliant option for AFCI/GFCI protection in residential kitchens and laundry areas for new construction, modifications/extensions and replacement receptacles. It is also ideal as a replacement for ungrounded receptacles, satisfying NEC requirements for both AFCI and GFCI protection.
Patents
  • CA2621644
  • CA2624409
  • CA2677283
  • CA2730014
  • CA2946849
  • CA2958166
  • MX302458
  • MX308495
  • MX325634
  • MX361147
  • US10317431
  • US10367347
  • US10401413
  • US10483066
  • US10656199
  • US11105864
  • US11456138
  • US7355117
  • US7697252
  • US7820909
  • US7868719
  • US8242362
  • US8526144
  • US8587914
  • US8599522
  • US8599523
  • US8944859
  • US9053886
  • US9577420
  • US9709626
  • US9759758
