HWDK HBL7810 30A 600V 3P DISC SW

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7810 | Codale Part # 4408470
$71.08/ea
ea
Log in or register to view your price, purchase history, and more!
45 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet

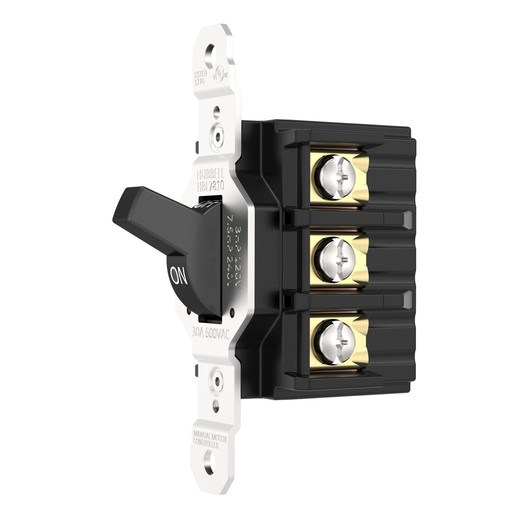

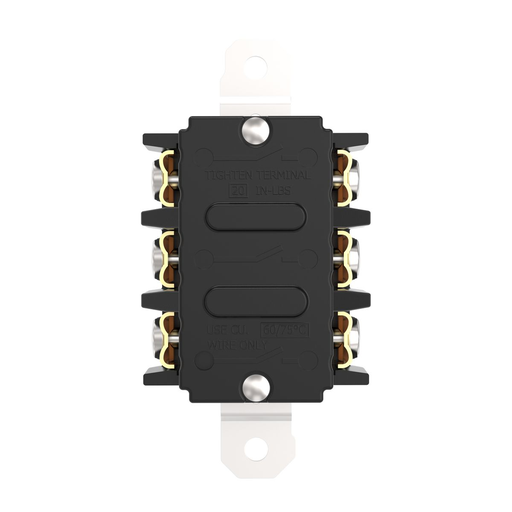

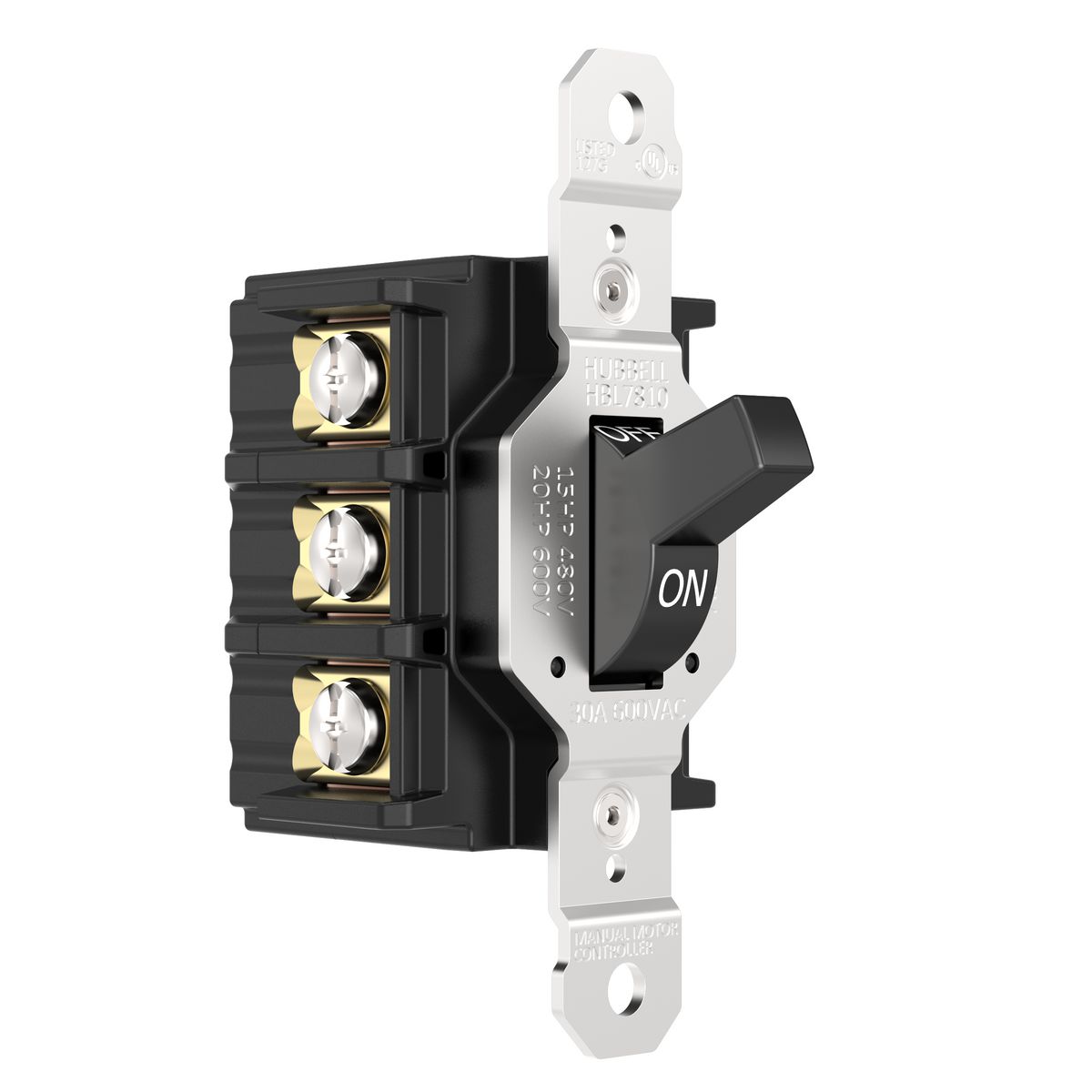

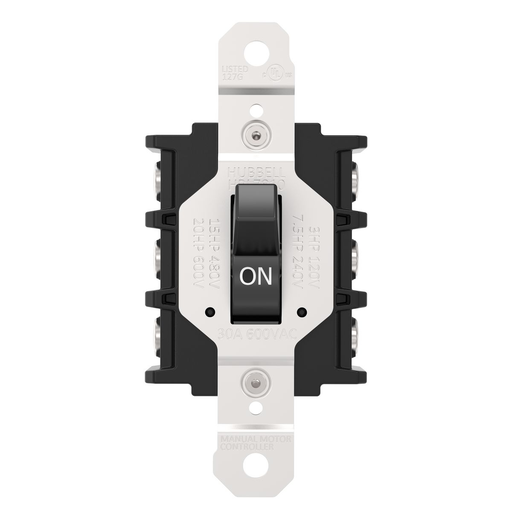

Circuit-Lock® Manual Toggle Controller/Motor Disconnect Switch, 3-pole 30A 600V AC, Back and Side Wired

Technical Information

Amperage
30 Amp
Current
30 Amp
Grade
Industrial
Horsepower
20 hp
Material
Stainless Steel
Number of Poles
3 Pole
Type
Back & Side Wire
Voltage
600 Volt
Wattage
18000 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585680507
Color
Black
Product UPC
78358568050
Weight
0.55 lb

Dimensions

Height
1.8 Inch
Length
6 Inch
Width
4.250 in

Certifications and Compliance

Country of Origin
China
Features
  • Thermoset body provides high resistance to electrical arc tracking
  • Strong ON/OFF action with quick-make, slow break operation
  • Optional Side Finger Guards for close wall applications and finger safe environments
  • Four large silver alloy contacts per pole has excellent conductivity with maximum longevity
  • Lubrication-free controller with continued ON/OFF cycling even in harsh, dust and high heat environments
  • Standard Product
