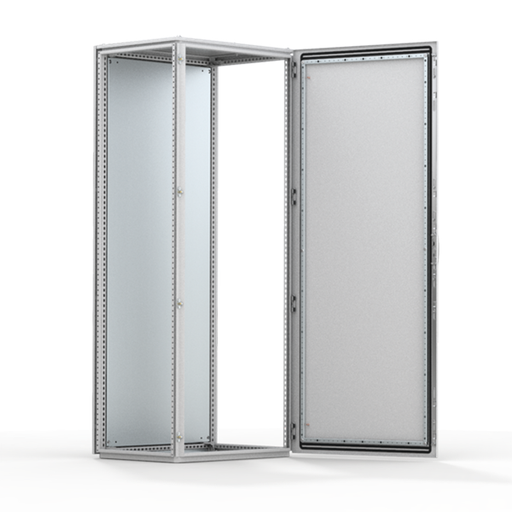

Product image for NVENT HOF MCS18084R5 Comb Enc 1Dr w
Image thumbnail 0
Image thumbnail 1
Email

NVENT HOF MCS18084R5 Comb Enc 1Dr w

Manufacturer: nVent Hoffman | Catalog # MCS18084R5 | Codale Part # 4408714
$3,646.42 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Single-door, combinable, floor-standing enclosure range, MCS, with IP 55/Type 12 rating. This Modular Single Door, MCS, MCS18084R5 item measures 70.87x31.50x15.75 inches with a material of Mild Steel.

Technical Information

Applications
For Maestro, Maestro IR, Vive Maestro Wireless, Maestro Wireless, Caseta Wireless, Pico Wireless, Diva, Skylark Contour, Skylark, Lumea Controls
Body Thickness
1.5 mm
Cable Entry
No
Color Coding
RAL 7035
Material
Steel
Size
70.87 x 31.5 x 15.75 inch
Type
Type 4 Mild Steel Freestanding Enclosure

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510494285
Color
Light Gray
Construction
Body: 16 gauge Door: 14 gauge
Finish
Powder Coated
Product UPC
78351049428
Weight
275.3 lb

Dimensions

Depth
15-3/4 Inch
Height
32.12 Inch
Length
71.24 Inch
Width
31.5 in
Features
  • Material: Frame: 1.5 mm painted steel. Door: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
  • Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
  • Door: Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.
  • Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting. RD version comes with rear door instead of rear panel.
  • Side panels: Supplied as an accessory.
  • Roof panel: Removable.
  • Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
  • Bottom plates: Consists of three or four (D>600) pieces.
  • Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
  • Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
  • Finish: RAL 7035 structured powder coating.
  • Protection: Complies with IP 55 | TYPE 12 | IK 10.
  • Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation add side panels.
  • Delivery: Frame with fitted door, rear panel, roof panel, bottom plates, mounting plate (not included for PER5 version) and door frame. For 400 mm wide enclosures, a mounting plate, bottom plates and door frame are not included. For enclosures 2200 mm height, delivery includes two CMB profiles mounted in depth. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
