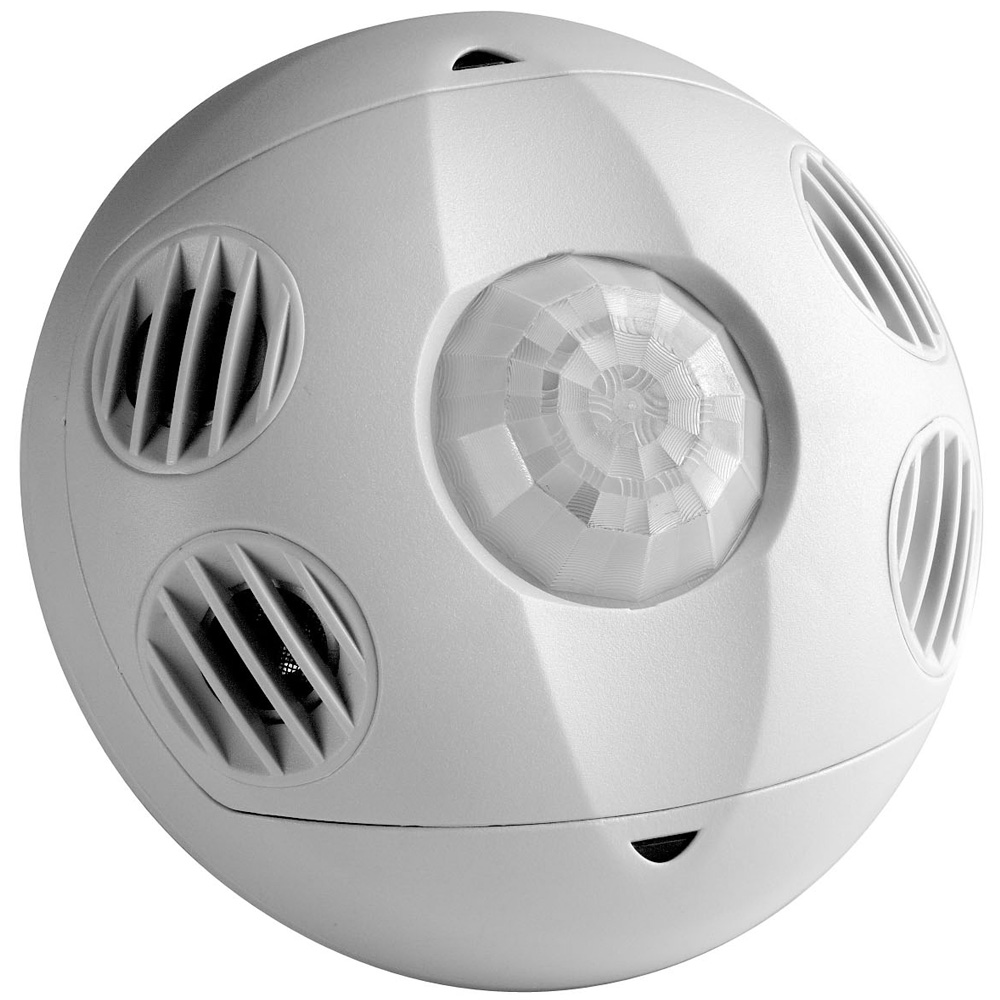

LEV OSC10-MWW WH OCC SENS 24V MLTIT

Manufacturer: Leviton | Catalog # OSC10-MWW | Codale Part # 4410301
$236.77/ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
Occupancy Sensor lighting control, Ceiling Mounted, Multi-technology, 24VDC, 35mA power consumption, 1000 sq ft, 360 degree (major motion: PIR: 40' diameter; U/S: 46'Lx23'W, minor motion: U/S: 34'Lx17'W), red LED=PIR, green LED-U/S, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', cUL/NOM listed, CEC Title 24 compliant Color: true-white

Technical Information

Coverage
1000 sq-ft
Frequency
40 kHz
Grade
Commercial
Mounting Type
Ceiling
Operating Temperature
0 degrees C
Sensor Type
Ceiling Mount
Size
1.57 in
Type
Occupancy Sensor
Voltage
24 VDC

Manufacturer Information

Brand
Leviton
Sub Brand
OCC SENSORS LOW VOLTAGE

General Product Info

12-Digit UPC
078477901014
Color
White
Product UPC
07847790101

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Self-adjusting: internal microprocessor continually analyzes, evaluates and adjusts the sensitivity and time delay. Performance is kept at a maximum and user complaints are eliminated.
  • Fast, simple installation: easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment for 360° rotation and flexibility
  • Maximum reliability, low cost: digital circuitry uses a minimum of components
  • Small motion sensitivity: the ultrasonic technology provides excellent small motion sensitivity
  • Wide coverage: units from 500 to 2000 sq. ft.
  • Rugged, high-impact, injection molded plastic device, custom true white color to meet true white applications
  • Applications: cafeterias, conference rooms, day care centers, workspaces, offices with cubicles
  • Occupancy Sensor , Ceiling Mounted, Multi-technology, Lighting Control , 24VDC, 25mA power consumption, 500 sq ft, 180 degree (major motion: PIR:20' radius; U/S: 23'Lx23'W, minor motion: U/S: 17'Lx17'W), red LED=PIR, green LED=U/S, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', cUL/NOM listed, CEC Title 24 compliant. Color: true-white. Do you have a question about an occupancy sensor or vacancy sensor?
