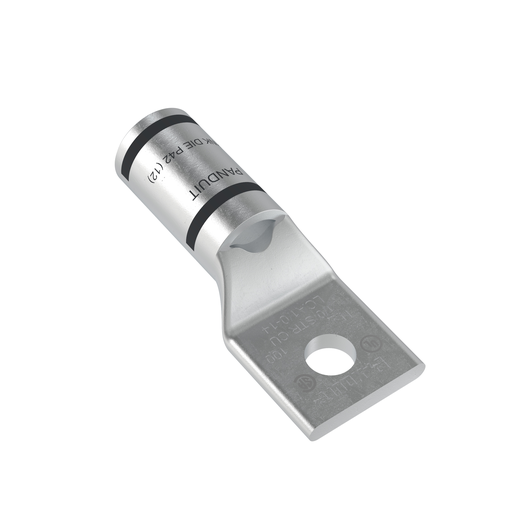

Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Panduit LCA1/0-14-X 1-Hole 1/0 AWG 1/4 Inch Copper Compression Lug

Manufacturer: Panduit | Catalog # LCA1/0-14-X | Codale Part # 4411464
$1,840.49/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
10 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The LCA1/0-14-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.

Technical Information

Angle
Straight
Barrel Length
0.94 in
Barrel Type
Standard
Cable Size
AWG
Color Coding
Pink
Material
Copper
Number of Holes
1 Hole
Size
1/0 AWG Code
Stud Size
1/4 in
Tongue Thickness
0.12 in
Tongue Type
Standard
Tongue Width
0.76 in
Type
Preterminated Copper Trunk, Category 6
Voltage
35,000 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983901142
Color
Fresh Pink Lemonade
Product UPC
07498390114
Weight
0.6350 lb

Dimensions

Outer Diameter
0.52 in
Overall Length
1.95 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
