Hubbell HBL4570CA 15 Amp 250 Volt Black/White L6-15P Locking Angled Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL4570CA | Codale Part # 4411469
$76.31/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

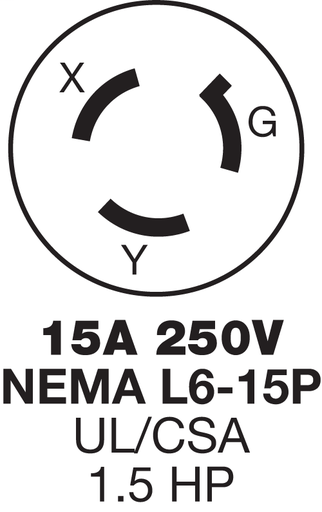

Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 15A 250V, 2-Pole 3-Wire Grounding, NEMA L6-15P, Screw Terminal, Black and White Nylon, 8 position angle.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
16-8 AWG
Cord Size
0.325 - 0.655 in
Cord Type
Portable
Current
15 Amp
Dielectric Strength
2000 V
Grounding
Yes
Horsepower
1.5 hp
Material
Nylon
Mounting Type
Cord
NEMA
L6-15P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C

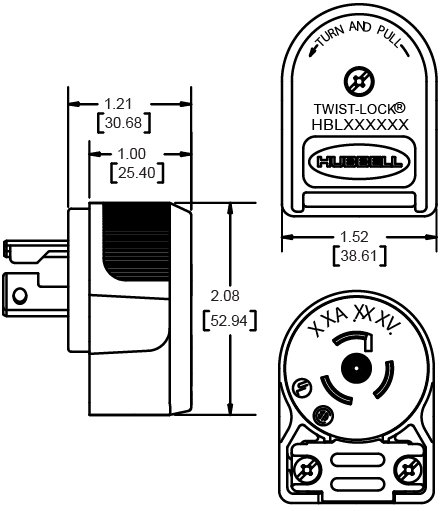

Size
2.08 in x 1.52 in x 1.21 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard Sized
Voltage
250 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585170053
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358517005
Weight
0.15 lb

Dimensions

Height
1.21 Inch
Length
2.08 Inch
Width
1.52 in

Certifications and Compliance

Country of Origin
USA
Features
  • Individually molded face for each blade configuration
  • Roomy wiring chamber provides ample space for wiring
  • Ribbed nylon housing provides a secure grip thats impact and chemical resistant
  • Angled
