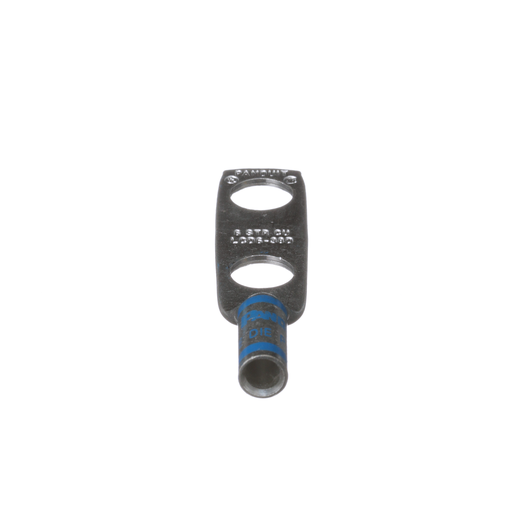

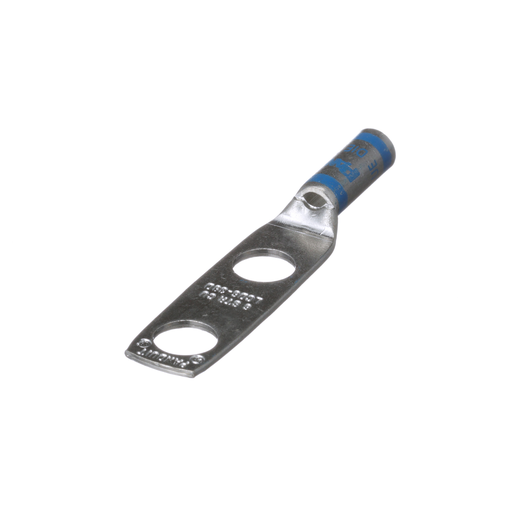

Panduit LCD6-38D-L Pan-Lug™ Copper 2 Hole Straight Tongue Compression Lug

Manufacturer: Panduit | Catalog # LCD6-38D-L | Codale Part # 4411498
$2,251.83/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
148 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Two-hole, standard barrel lug with window, #6 AWG wire, 3/8 stud hole, 1 hole spacing.

Technical Information

Angle
Straight
Barrel Length
0.81 in
Barrel Type
Standard with Inspection Window, Straight
Cable Size
AWG
Conductor Size
6 AWG
Material
Copper
Mounting Type
Hole
Number of Holes
2 Hole
Size
#6 AWG Code
Standard
ANSI C-73
Stud Size
3/8 in
Tongue Thickness
0.06 in
Tongue Type
Standard
Tongue Width
0.62 in
Type
Type LCD
Voltage
35,000 Volt

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983383139
Color
Olive, Orange, Royal Blue and Yellow
Finish
Tin Plated
Product UPC
07498338313
UNSPSC
39121405
Weight
1.5600 lb

Dimensions

Overall Length
2.83 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, NEBS Level 3
