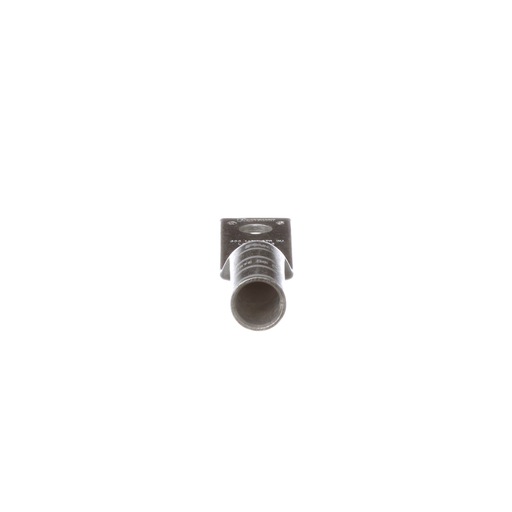

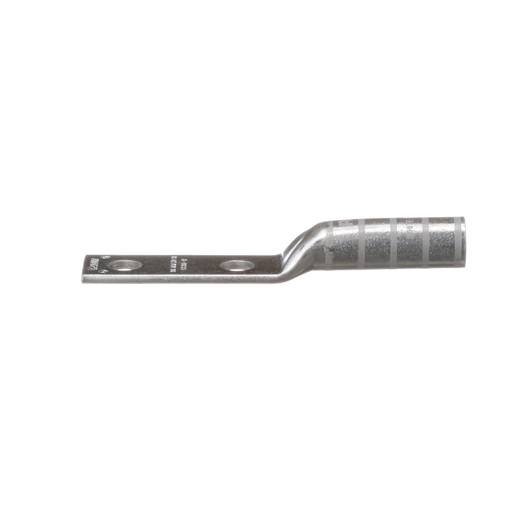

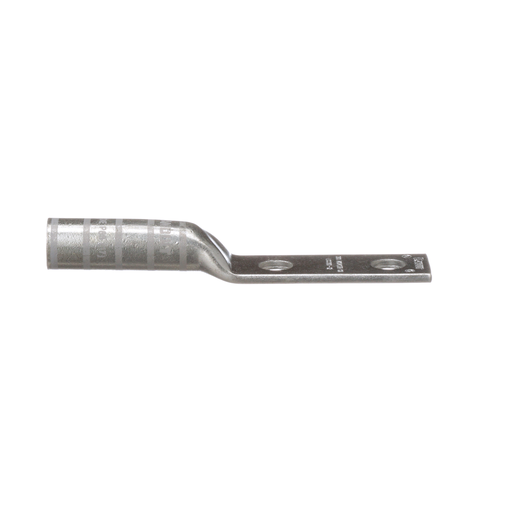

Panduit LCC300-12-X Pan-Lug™ Copper 2 Hole Straight Tongue Compression Lug

Manufacturer: PANDUIT | Catalog # LCC300-12-X | Codale Part # 4411501
$5,979.51/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The LCC300-12-X Tin-Plated Copper Compression Lug Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.

Technical Information

Angle
Straight
Barrel Length
2.24 in
Barrel Type
Long Barrel Length without Inspection Window
Cable Size
AWG
Material
Copper
Mounting Type
2.31 in Hole
Number of Holes
2 Hole
Size
300 kcmil Code
Standard
ANSI C-73
Stud Size
1/2 in
Tongue Thickness
0.16 in
Tongue Type
Standard
Tongue Width
1.19 in
Type
Straight, Type LCC
Voltage
35,000 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983902507
Color
White
Finish
Tin Plated
Product UPC
07498390250
Weight
3.4400 lb

Dimensions

Outer Diameter
0.81 in
Overall Length
5.94 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
