Panduit DV10-250-D Vinyl Barrel Insulated Female Disconnect

Manufacturer: PANDUIT | Catalog # DV10-250-D | Codale Part # 4411530
$1,279.25/m (1000 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet

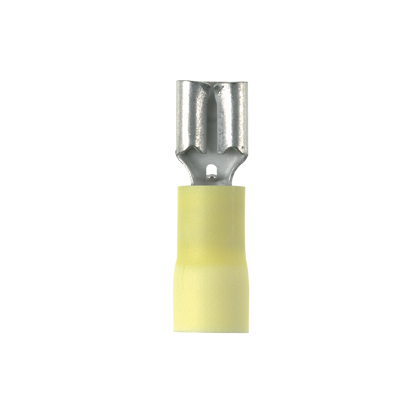

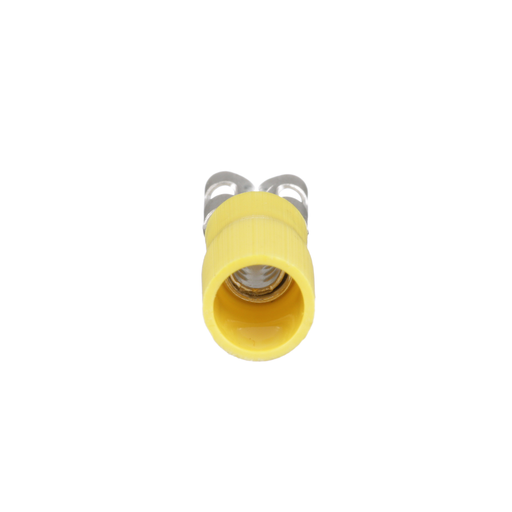

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in yellow vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm.). It is 1.03" (26.2 mm) long and 0.3" (7.6 mm) wide. The disconnect has a funnel entry barrel configuration and a sleaved barrel. It comes in boxes of 500.

Technical Information

Barrel Type
Sleeved Barrel
Color Coding
Yellow
Conductor Size
10 AWG
Material
Brass
Max Operating Temperature
150 degrees C
Tc Connection
Funnel Entry
Temperature Rating
221 F
Type
Disconnect
Voltage
600 Volt
Wire Size
10 AWG

Packaging

Pkg Qty
500

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983821051
Color
Yellow
Finish
Tinned
Product UPC
07498382105
UNSPSC
39121409
Weight
2.0500 lb

Dimensions

Height
0.13 Inch
Overall Length
1.03 in
Width
0.3 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
