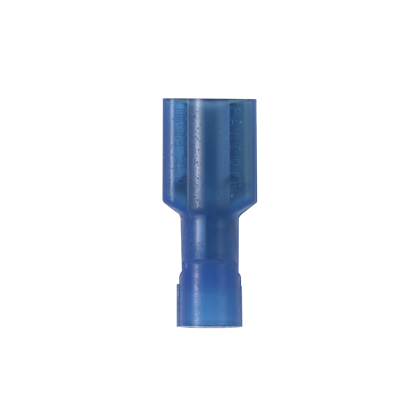

Product image for Panduit DNF14-250FI-L Nylon Fully Insulated Female Disconnect
Image thumbnail 0
Image thumbnail 1
Email

Panduit DNF14-250FI-L Nylon Fully Insulated Female Disconnect

Manufacturer: Panduit | Catalog # DNF14-250FI-L | Codale Part # 4411537
$248.71/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
150 available

For Delivery

Not in local stock *
Check your local branch
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.94" (23.9 mm) long and 0.36" (9.1 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 50.

Technical Information

Barrel Type
Grip Sleeve
Conductor Size
16-14 AWG
Insulation Material
Nylon
Material
Brass
Max Operating Temperature
105 degrees F
Standard
CSA,E2186,UL
Tab Size
1/4 x 0.032 in
Tc Connection
Funnel
Temperature Rating
221 degrees F
Type
Loose-Piece
Voltage
600 Volt
Wire Size
16-14 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983119066
Color
Blue
Finish
Tin Plated
Product UPC
07498311906
UNSPSC
39121409
Weight
0.1900 lb

Dimensions

Depth
0.94 Inch
Height
0.24 Inch
Overall Length
0.94 in
Width
0.36 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
