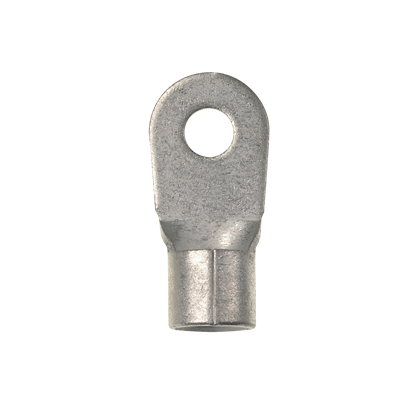

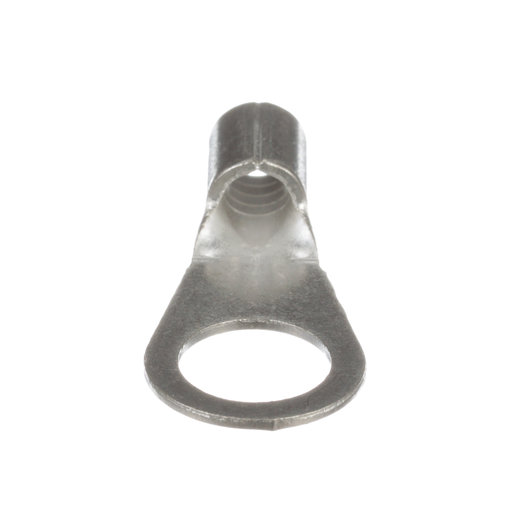

Panduit P8-38R-Q Pan-Term® High Temperature Non-Insulated Ring Terminal

Manufacturer: PANDUIT | Catalog # P8-38R-Q | Codale Part # 4411548
$333.74/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
Ring terminal, large wire, 8 AWG, 3/8" stud size, non-insulated, standard package.

Technical Information

Barrel Length
0.48 in
Barrel Type
Brazed Seam
Color Coding
Metallic
Conductor Size
8 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
150 degrees C
Size
3/8"
Standard
CSA C22.2 No. 85,UL E23018,cULus
Tc Connection
Standard
Temperature Rating
302 degrees F
Tongue Thickness
0.04 in
Tongue Width
0.59 in
Type
Bell End
Voltage
2,000 Volt
Wire Size
8 AWG

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983870813
Color
NA
Finish
Rust-Proof Plating, Vinyl Coated
Product UPC
07498387081
UNSPSC
39121409
Weight
2.1000 lb

Dimensions

Outer Diameter
0.27 in
Overall Length
1.25 in
Width
15 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
