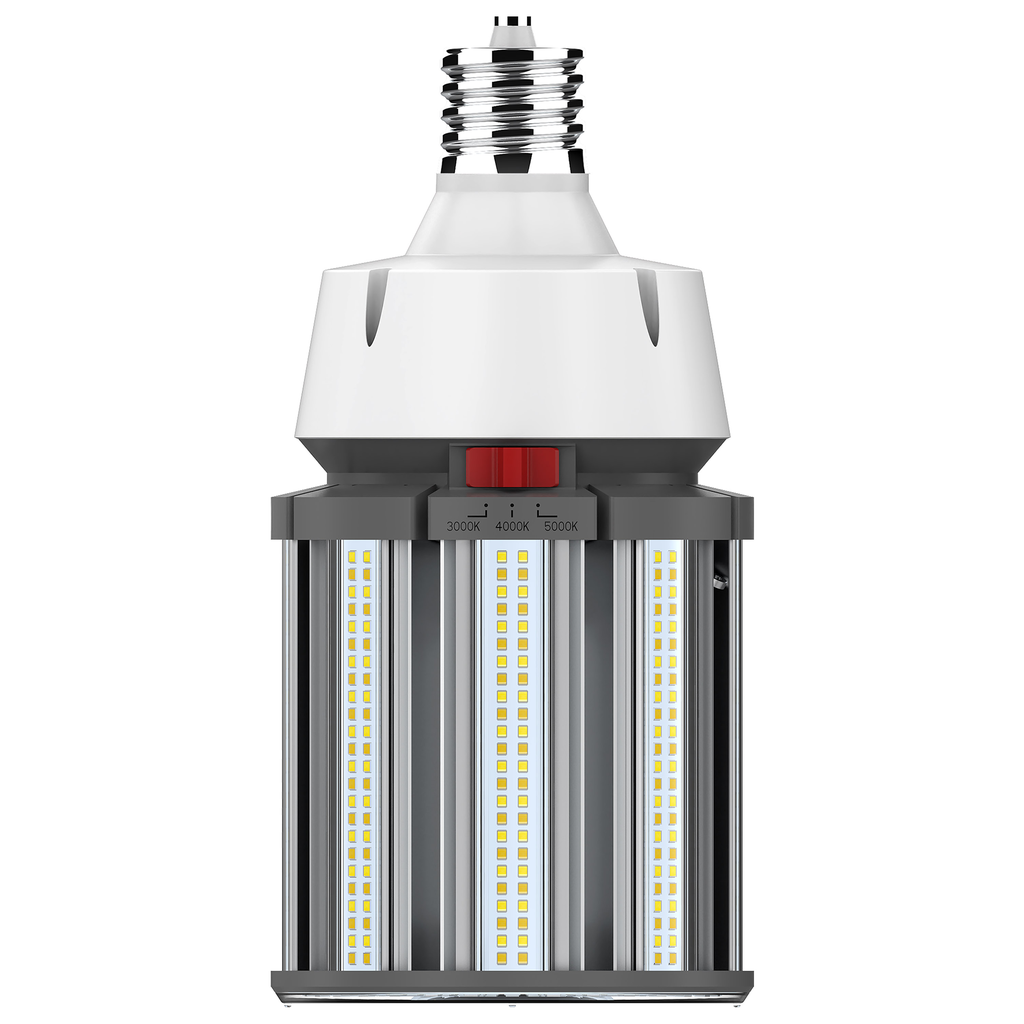

Product image for SATCO S23168 100W/LED/CCT/277-480V/
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

SATCO S23168 100W/LED/CCT/277-480V/

Manufacturer: SATCO Lighting | Catalog # S23168 | Codale Part # 4412426
$345.66/ea
ea
Log in or register to view your price, purchase history, and more!
12 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
SATCO|NUVO's S23168 100 watt LED lamp is the lamp of choice for large scale applications. Illuminate gymnasiums, warehouses or any other venues with high ceilings requiring light output. This CCT selectable map delivers 50,000 hours of clean, energy saving light.

Technical Information

Amperage
0.361-0.208 Amp
Average Rated Life
50000 hr
Base
Mogul Extended
Beam Angle
300 DEG
Beam Spread
300
Color Temperature
Cool White,Warm White
Correlated Color Temp
3000 K
Dimmable?
Yes
Incandescent Equivalent
400 W
Indoor Outdoor
Indoor;Outdoor
IP Rating
IP64
Lens Color
Clear
Lens Material
Plastic
Lumens
13,000 Lumen
Material
Aluminum,Polycarbonate
Operating Temperature
-22 degrees F
Power Factor
0.9
Size
10.46 IN
Technology Type
LED
Type
Corncob
Voltage
277 Volt
Wattage
100 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923231681
Finish
White
Housing Color
Gray
Product UPC
04592323168
Weight
3.19 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • MOL: 10.46 inches, MOD: 5.12 inches
  • Corncob Shape
  • White Finish
  • Mogul Extended Base
  • 300 degree beam spread
  • Rated for 50,000 hours
  • CCT Selectable
  • 5 year limited warranty
  • Damp rated for indoor and outdoor use
Ballasting Requirements
  • Ballast Bypass
Installation Notes
  • Not for use in vapor tight fixtures.
Replaced By Products
  • S13124
  • S28716
  • S8716
