Hubbell HBL4786 Locking Flanged-INLT, 15A 250V, L6-15P, SS

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL4786 | Codale Part # 4413783
$121.45/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

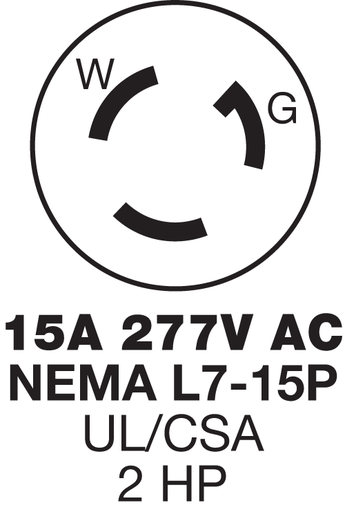

Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15P, Screw Terminal, Stainless Steel casing, Brown/Stainless.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
14 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw, Surface
NEMA
L7-15P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec.W-C-596,UL 498
Tc Connection
Screw Terminals
Temperature Rating
-40 degrees C
Type
Flanged, Industrial Grade
Voltage
277 Volt
Wattage
4155 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585236988
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358523698
Weight
0.10 lb

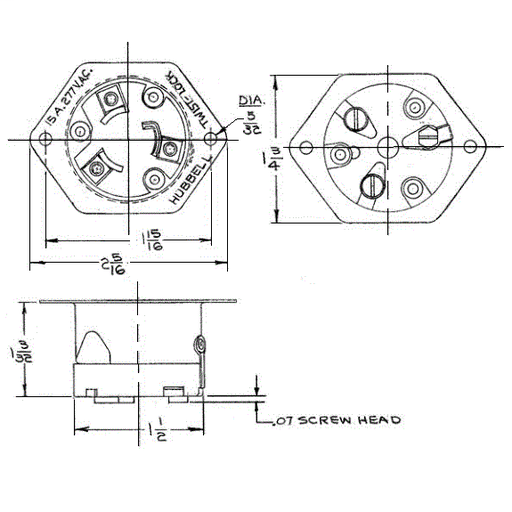

Dimensions

Height
1.09 Inch
Length
2.31 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • Heat resistant thermoset construction
  • Stainless steel casing
  • #5-40 terminal screws
  • Mounting screws included
  • Metallic Flange
