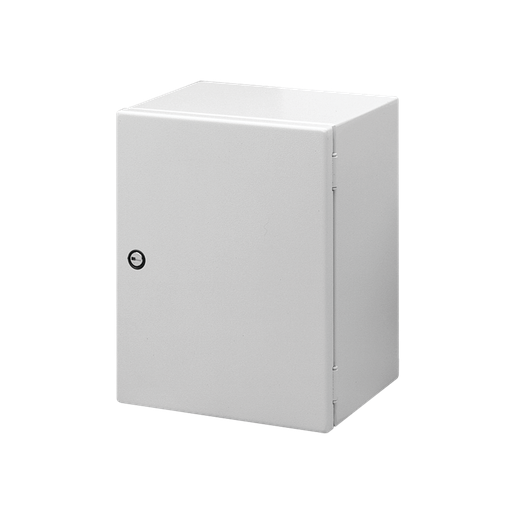

Hoffman MHC300250150 Small GL66 Series Wall-Mount Enclosures, 300x250x150mm, Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # MHC300250150 | Codale Part # 4414480
*Call For Price*
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
With streamlined styling and a durable light-gray finish, these enclosures are an excellent option when style and function are key. These enclosures are ideal for indoor or outdoor applications which require corrosion protection from chemicals and water. The enclosures contain an external body flange to prevent contaminants from entering the enclosure; a strong door with removable hinges; a conductive panel and quarter-turn latch with 3mm double-bit insert for a secure closure.

Technical Information

Applications
Indoor and Outdoor
Color Coding
RAL 7035
Cover Type
Quarter-Turn Latch
Gauge
16 ga
Material
Steel
Mounting Type
Wall
Standard
CSA, File No. 42186: Type 4 And 12,CUL Listed Per CSA C22.2 No. 94; Type 3, 4, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4 And 12,UL 508A Listed; Type 3, 4, 12; File No. E61997
Type
Small

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510242480
Color
Light Gray
Finish
RAL 7035 Textured Polyester Powder Coated Paint Inside and Out, Galvanized Panel
Product UPC
78351024248
Weight
12.1 lb

Dimensions

Depth
120 mm
Height
300 mm
Length
12.2 Inch
Thickness
1.52 mm
Width
250 mm
Features
  • Dimensions in millimeters
  • Seams continuously welded and ground smooth
  • External formed body flange
  • Large perimeter body opening
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Seamless foam-in-place gasket
  • Grounding stud on the body
  • Bonding provision on the door
  • Conductive panel included
  • Quarter-turn latches furnished with 3mm double-bit insert
  • Door opens 180 degrees
  • Furnished hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
  • Installation instructions
