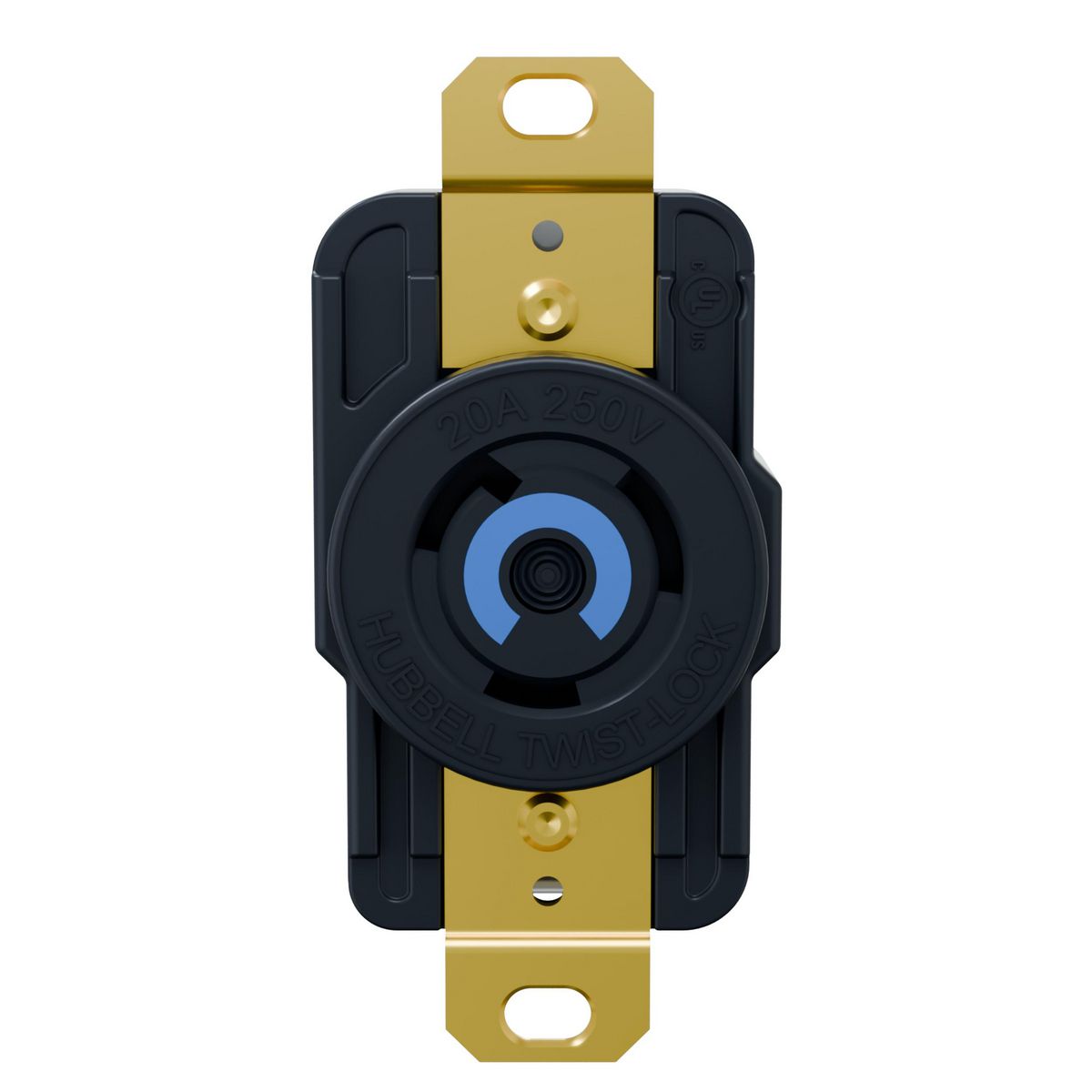

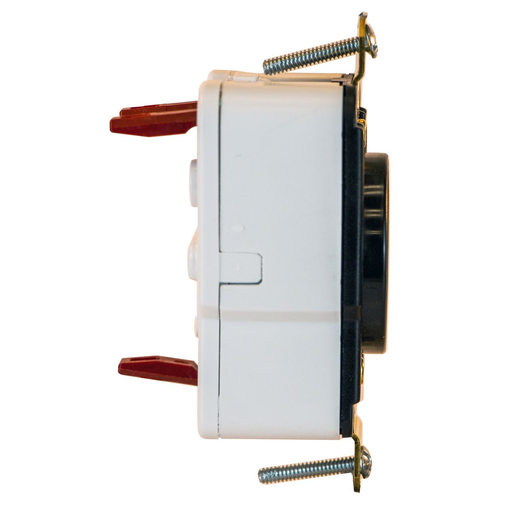

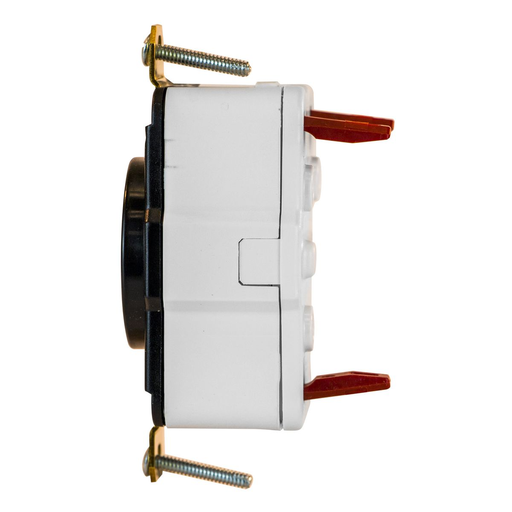

Hubbell HBL2320ST 20A, 250V Twist-Lock Receptacle w/ Spring

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2320ST | Codale Part # 4415298
$19.61/ea
ea
Log in or register to view your price, purchase history, and more!
17 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Installation / Instruction Manual
20A, 250V EdgeConnect™ Twist-Lock® Receptacle with Spring Termination

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-10 AWG Solid, 14-8 AWG Stranded
Connection Type
Spring Terminal
Current
20 Amp
Dielectric Strength
2000 V
Grade
Industrial
Material
Nylon
Mounting Type
Screw
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard Sized Product
Standard
C22.2 No. 42,CSA,UL,UL 498
Tc Connection
Spring Termination
Temperature Rating
-40 degrees C (Minimum), 75 degrees C (Maximum Continuous)
Type
Heavy-Duty, Standard
Voltage
250 Volt
Wattage
5000 Watt
Wire Size
10 AWG
Wire Type
Single Receptacle

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
EdgeConnect™ Twist-Lock®

General Product Info

12-Digit UPC
783585569550
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358556955
Weight
0.3000 lb

Dimensions

Height
1.47 Inch
Length
3.28 Inch
Width
1.70 in

Certifications and Compliance

Country of Origin
China
Features
  • Faster termination time
  • No need for screwdriver and torque wrench
  • Spring Termination eliminates strand relaxation
  • High-impact, abuse-resistant nylon face
  • Face color coding by voltage facilitates locating and mating of proper devices
  • Twist-Lock Receptacle with Spring Termination
