NVENT HOF ESFM458 Swing frame centr

Manufacturer: nVent Hoffman | Catalog # ESFM458 | Codale Part # 4415666
$2,767.04/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

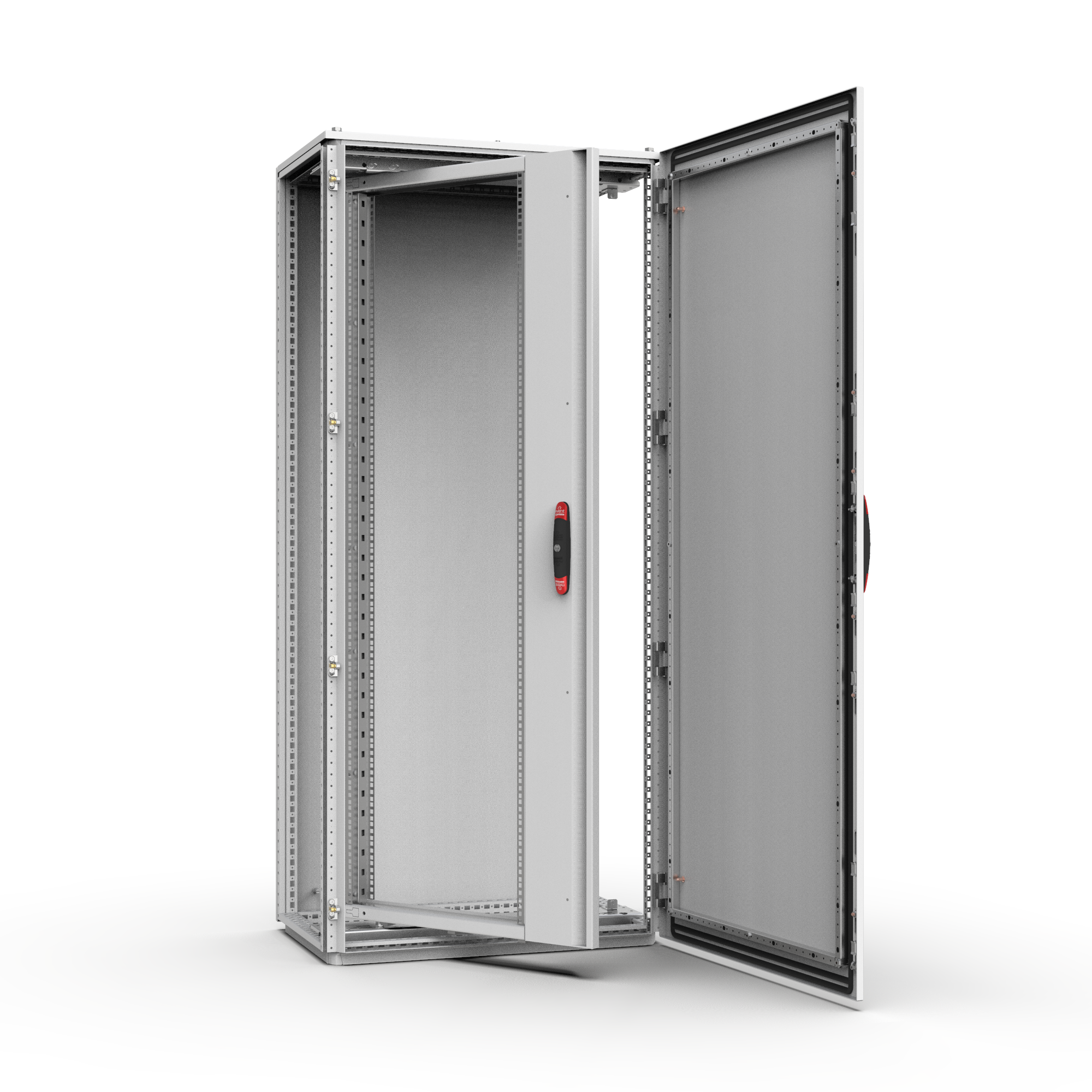

Swing Frame Middle Mounted, ESFM is for mounting 19-inch equipment when additional space is needed. This Swing Frame Middle Mounted, ESFM, ESFM458 item measures 2067x694x80mm with a material of Mild Steel, finish Zinc Plated.

Technical Information

Applications
For Maestro, Maestro IR, Vive Maestro Wireless, Maestro Wireless, Caseta Wireless, Pico Wireless, Diva, Skylark Contour, Skylark, Lumea Controls
Material
Steel
Size
81.38 x 27.32 x 3.15 inch
Type
IEC Enclosure Accessories

Packaging

Pkg Qty
1

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510480684
Color
Unpainted
Construction
11 gauge
Finish
Zinc
Product UPC
78351048068
Weight
66.14 lb

Dimensions

Depth
3.15 Inch
Height
81.38 Inch
Length
86.99 Inch
Thickness
3 mm
Width
27.32 in
Features
  • Description: Full height swing frame for 19 components allowing left and right hand opening with grip over the full height. Can be used in steel, combinable and compact enclosures. Hinges designed to give extra build-in depth. Adjustable top hinge for square mounting of the swing frame. Rigid W-shaped frame profile for heavy equipment. Zinc plated 19\" vertical profiles for direct earthing of the mounted components. Full access to the enclosure aperture can be acquired by the standard fitted 180° hinges. For mounting use transversal support bars ESFB. Depth support and easy cable routing is achieved with depth mounting plate SFMP. Adjustable in depth by steps of 12.5 mm.
  • Maximum load: 1800 N, supplied with a self-positioning device.
  • Lock: Double-bit 3 mm espagnolette (other lock options possible).
  • Material: 19\" vertical profiles 2 mm zinc plated steel. Frame: vertical profiles 2 mm and horizontal profiles 3 mm.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: 1 swing frame with 180° hinges.
  • Mounting requirements: ESFM for 800 mm and 1000 mm wide steel, combinable enclosures. Add ESFB for mounting in a steel, combinable enclosure.
