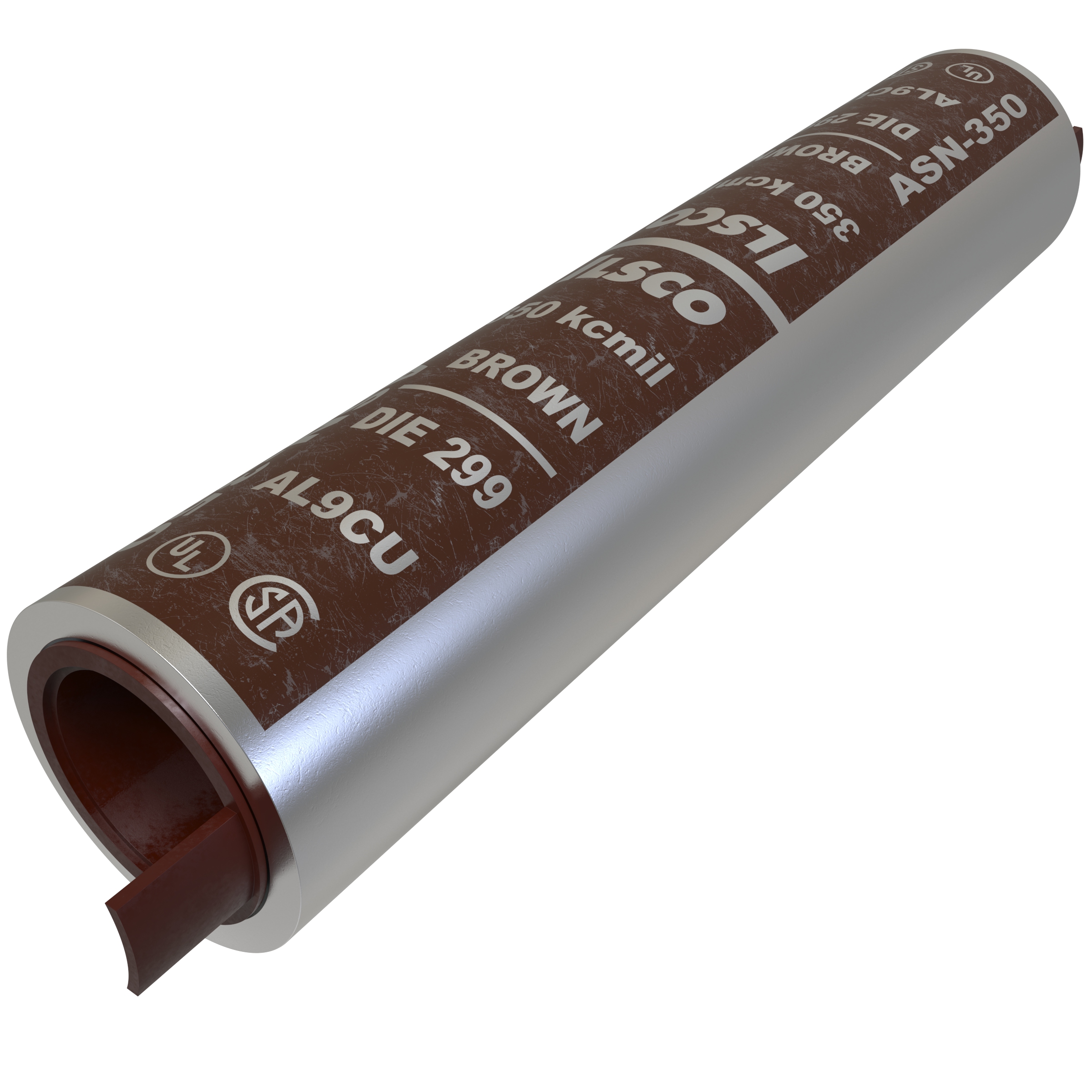

ILSCO ASN-350 AL CMP SLV 350 kcmil

Manufacturer: Ilsco | Catalog # ASN-350 | Codale Part # 4416999
$39.01/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Surecrimp Aluminum Compression Sleeve, Compression connection, Dual Rated, Aluminum material, Tin plated connector, Standard Barrel, UL, CSA, Copper/Aluminum Primary Conductor 350 kcmil, Contains De-Ox®, 1 conductors, Dimensions 5.125 in x 1.105 in x 1.105 in, rated for 35 kV, die color code Brown, primary color(s) Silver,

Technical Information

Applications
Use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques must be used
Barrel Type
Standard
Color Coding
Brown
Conductor Material
Aluminum,Copper
Conductor Size
350 kcmil
Conductor Type
Aluminum and Copper
Connection Type
Compression
Die Code
299
Material
Aluminum
Number of Conductors
1
Size
L:5.125;W:1.105;H:1.105 IN
Tc Connection
Compression
Temperature Rating
90 degrees C
Type
Dual Rated, Chamfered Barrel
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669184822
Color
Brown
Finish
Electro-Tin Plated
Product UPC
78366918482
Weight
0.275 lb

Dimensions

Height
1.15 Inch
Inside Diameter
0.72 in
Length
5-1/8 Inch
Outside Diameter
1.105 in
Width
1.105 in
