Burndy BA10EF10 Vinyl Fork Terminal For 12 - 10 AWG

Manufacturer: Hubbell-Burndy | Catalog # BA10EF10 | Codale Part # 4417140
$114.47/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Copper Fork Terminal, 12 - 10 AWG, 600 V, #8 - #10 Stud, Polyvinylchloride Insulation, Tin Plated.

Technical Information

Applications
Commercial and Light Duty Industrial Control and Power Circuit Applications
Cable Size
12 - 10 AWG
Conductor Size
12-10 AWG
Conductor Type
CU C Str-Size
Connection Type
Fork Terminal
Insulation Type
Vinyl
Material
Copper
Plated?
Yes
Plating Type
Tin
Standard
3R,C22.2 No. 0.4,C22.2 No. 18,C22.2 No. 94 Enclosures Types 1,UL 514C,UL467,UL50 Enclosures Types 1
Stud Size
10 in
Type
Short Sleeve, Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
Vinylug™

General Product Info

12-Digit UPC
781810026533
Color
Yellow
Product UPC
78181002653
Weight
0.0040 lb

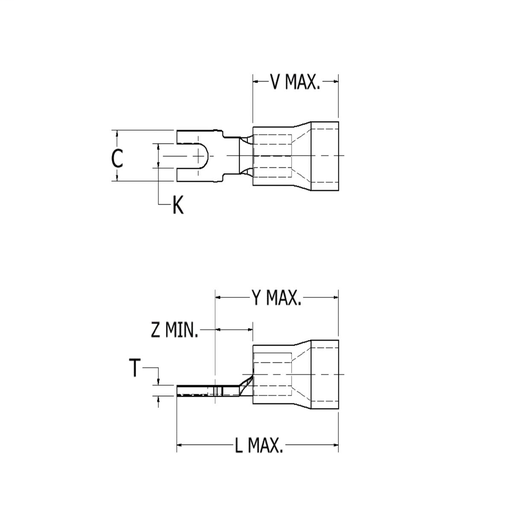

Dimensions

Height
0.26 Inch
Hole Size
0.20 in
Length
1.07 Inch
Overall Length
1.07 in
Width
.36 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
Features
  • Fork terminals are constructed of pure electrolytic copper
  • Long brazed seam barrel with deep V groove inner serations for optimum conductivity, reliability and holding power after crimping
  • Fork tongue design for faster installation - screw only needs to be loosened for termination
  • Two or more terminals can be stacked on a common stud
  • Provides maximum conductivity, low resistance and ductility for excellent crimp forming properties
  • Electro-tin plating for durable, long lasting corrosion resistance
  • Inspection hole/skive provides an easy visual check of proper wire insertion
  • 600 Volts maximum, 105°C maximum
