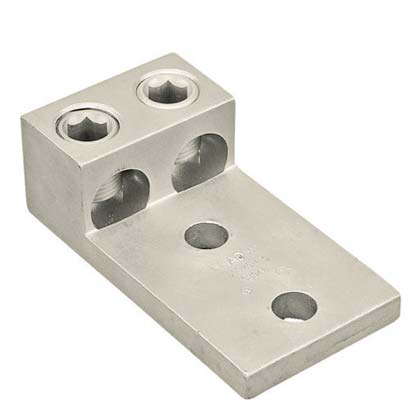

Panduit LAM2LB600-12-3 Pan-Lug™ Aluminum Mechanical Lug

Manufacturer: PANDUIT | Catalog # LAM2LB600-12-3 | Codale Part # 4419134
$10,955.52/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
Two-hole, aluminum, two barrel lug, dual barrel, type LAM2B, NEMA hole sizes and spacing, #2 AWG - 600 kcmil, 1/2 (12.7mm) stud hole.

Technical Information

Amperage
NA Amp
Applications
Stranded Aluminum or Copper Code Conductor
Material
Aluminum
Number of Ports
NA
Stud Hole Size
1/2 in
Temperature Rating
90?degrees C (194?degrees F)
Tongue Thickness
0.38 in
Tongue Type
Straight
Tongue Width
2.85 in
Type
Mechanical Lug

Packaging

Pkg Qty
3

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983325825
Finish
Tin Plated
Product Type
Power Connectors
Product UPC
07498332582
UNSPSC
39121408
Weight
3.5600 lb

Dimensions

Height
1-1/2 Inch
Length
5-1/2 Inch
Overall Length
5.5 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
USA
Hazmat Flag
No

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90°C
