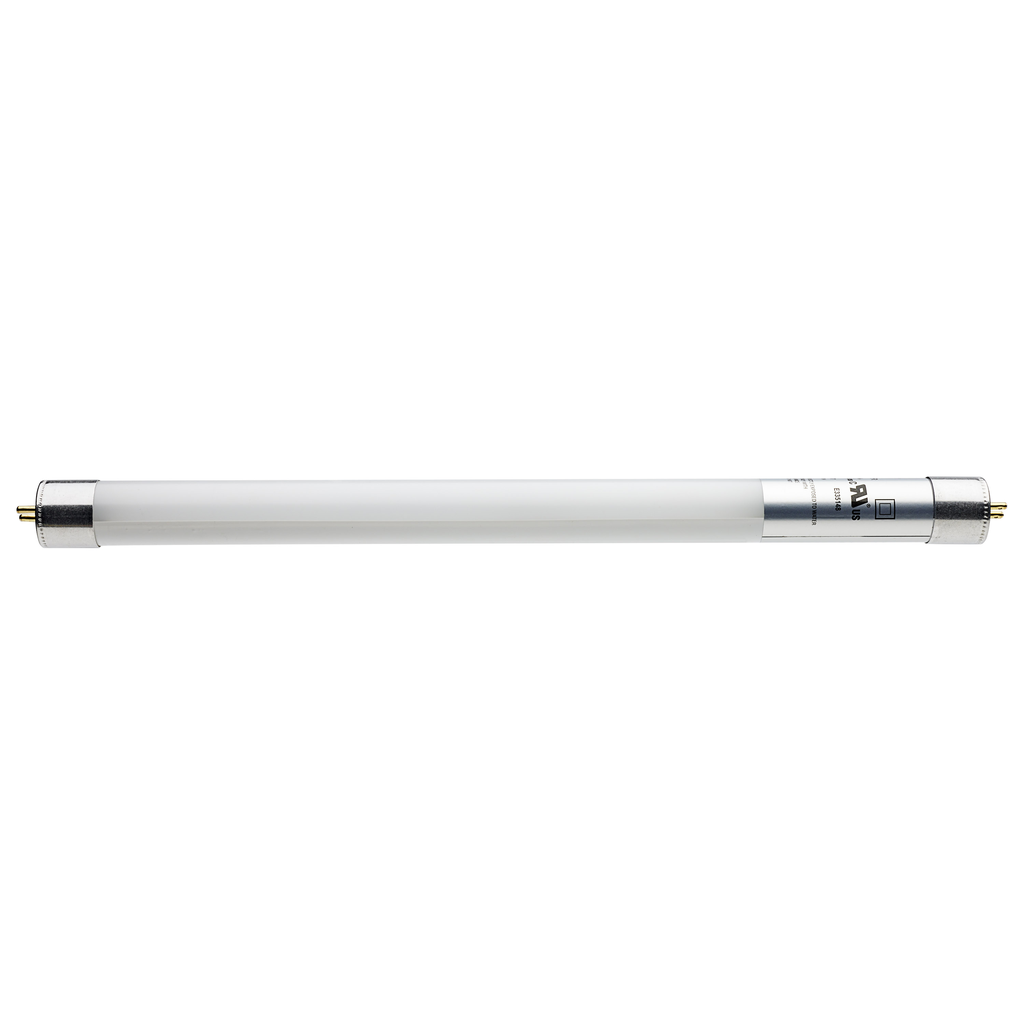

Product image for Satco S11904 4 Watt T5 LED; Miniature bi-pin base; 3000K; 50000 Average rated hours; 400 Lumens; 120-277 Volt; Type B; Ballast Bypass; Double Ended Wiring
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Satco S11904 4 Watt T5 LED; Miniature bi-pin base; 3000K; 50000 Average rated hours; 400 Lumens; 120-277 Volt; Type B; Ballast Bypass; Double Ended Wiring

Manufacturer: SATCO Lighting | Catalog # S11904 | Codale Part # 4419701
$10.88/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
4W T5 LED; Miniature bi-pin base; 3000K; 50000 Average rated hours; 400 Lumens; 120-277V; Type B; Ballast Bypass; Double Ended Wiring

Technical Information

Amperage
0.033-0.014 Amp
Average Rated Life
50000 hr
Base
Miniature Bi Pin
Beam Angle
240
Beam Spread
240
Bulb Shape
T5
Color Accuracy
82
Color Rendering Index
82
Color Temperature
3000 K
Correlated Color Temp
3000 K
Dimmable?
No
Incandescent Equivalent
25 W
Lens Color
Frost
Lumens
400 Lumen
Material
Glass
Operating Frequency
50 Hz
Operating Temperature
-13 degrees F
Power Factor
0.9
Technology Type
LED
Type
Lamps
Voltage
120 Volt
Wattage
4 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923119040
Finish
Frosted
Product UPC
04592311904
Weight
0.08 lb

Dimensions

Diameter
0.63 Inch
Length
11.91 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • MOL: 11.91 inches, MOD: 0.83 inches
  • Superior 82 CRI light quality, 400 lumens, 3000K warm white light, with a 240 degree beam spread
  • Rated for enclosed fixtures
  • Damp location rated
  • 8 watt fluorescent equivalent
  • Frost finished linear bulb
  • LED energy efficient fixture
  • 5 Year Limited Warranty
  • Replaces F8T5/WW lamps
Installation Notes
  • Not for use in vapor tight fixtures. Direct wire 120-277V line voltage
  • Double ended wiring
Ballasting Requirements
  • No ballast or external driver required
