Klein CL440 HVAC Clamp Meter

Manufacturer: Klein Tools | Catalog # CL440 | Codale Part # 4419966
$113.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet

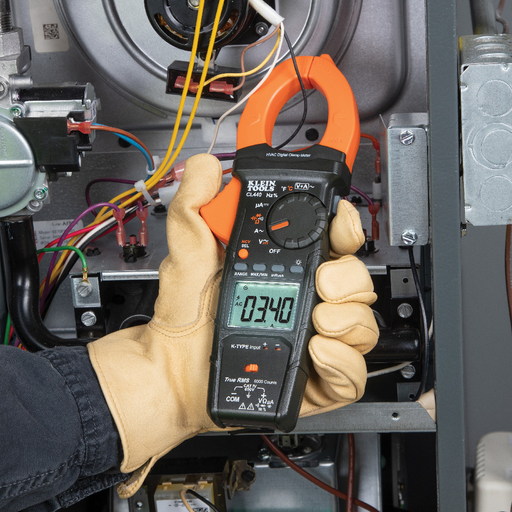

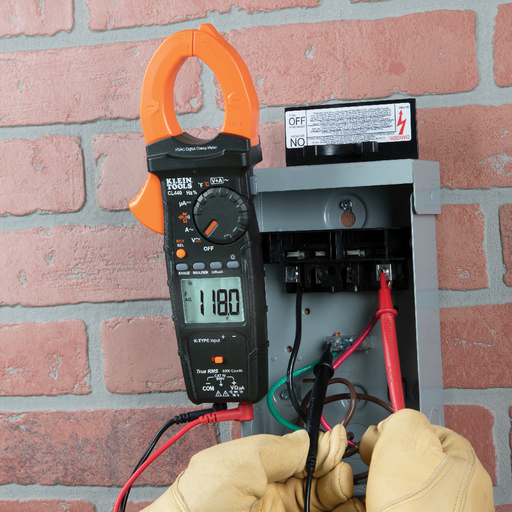

Klein Tools CL440 Clamp Meter is an advanced HVAC clamp meter with automatically ranging true root mean square (TRMS) for maximum accuracy. The meter measures AC current, inrush current, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, temperature, diodes, and more. This Digital Clamp Meter comes with right-angle input test leads, push-on alligator clips, K-Type thermocouple, storage pouch, instructional manual, and 3 x AAA batteries.

Technical Information

Applications
Measures AC Current, Inrush Current, AC/DC Voltage, DC Microamps, Resistance, Continuity, Frequency, Capacitance, Temperature, Diodes and More
Battery Type
(3) AAA
Display Type
LCD
Frequency
60 kHz
Jaw Capacity
2 in
Material
ABS,Electronic Components
Resistance
60 M?
Type
HVAC TRMS Clamp Meter

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644693359
Product UPC
09264469335
Weight
14.2 oz

Dimensions

Depth
10.44 Inch
Height
1.57 Inch
Overall Length
10.04 in
Width
3.77 in

Certifications and Compliance

Country of Origin
China
Features
  • CL440 HVAC Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter
  • Digital clamp measures 600.0 A AC current and inrush current
  • Test leads measure 750V AC/600V DC voltage, DC micro amp, resistance, continuity, frequency, duty-cycle, capacitance, and diode tests

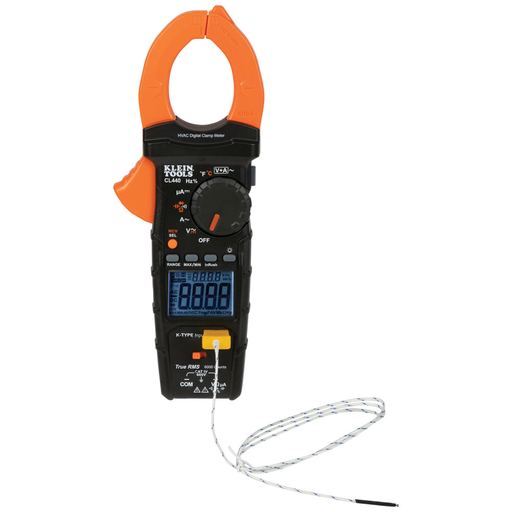

  • K-Type thermocouple port for measuring temperature from -328 to 2462 Degrees Fahrenheit (-200 to 1400 Degrees Celsius)
  • Detect AC current with non-contact voltage tester integrated into the clamp jaw
  • Backlit LCD with dual V + A function allows simultaneous viewing of voltage and current measurements
  • Dedicated mode for capturing DC micro amp and inrush current
  • CAT IV 600V, CAT III 750V, Class 2, Double insulation safety rating

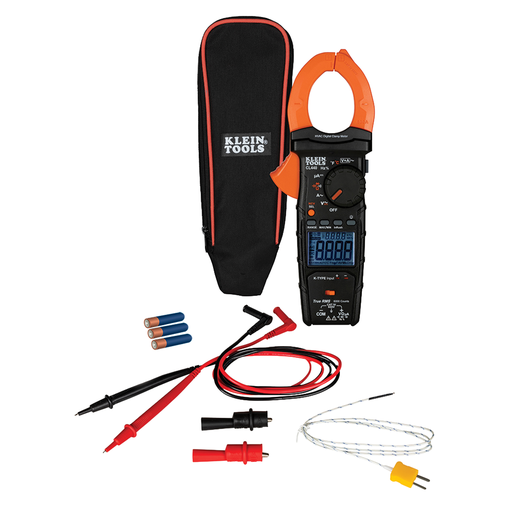

  • Includes right-angle input test leads, push-on alligator clips, K-type thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
  • Can be used with Magnetic Hanger Cat. No. 69417 (sold separately) for hands free operation
  • Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature
Warnings
  • Never use the meter on a circuit with voltages that exceed the category based rating of this meter.
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
