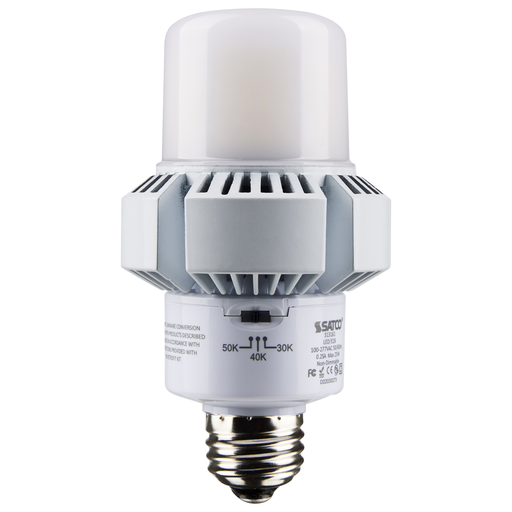

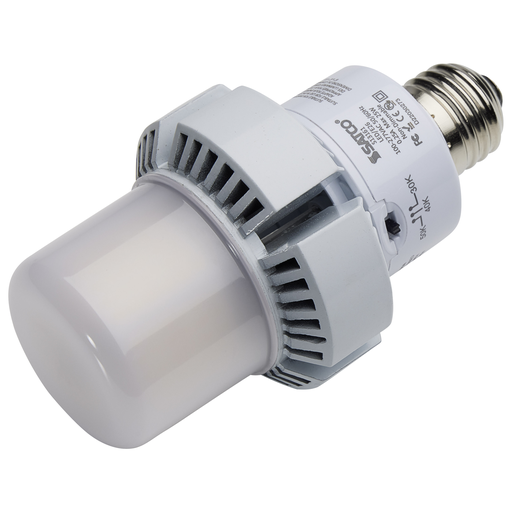

SATCO S13161 25W/AP23/LED/CCT/100-2

Manufacturer: SATCO Lighting | Catalog # S13161 | Codale Part # 4423530

$53.92/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.

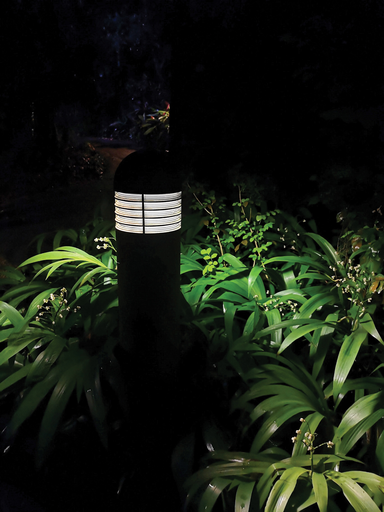

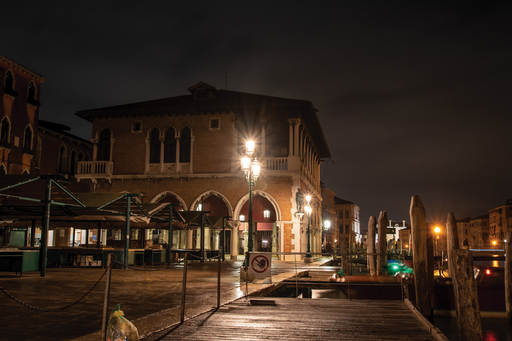

S13161, Satco's 25-watt medium base A-Plus 23 lamp, is one of the newest additions to the Hi-Pro LED family, providing up to 85% energy savings and advanced features. ColorQuick CCT selectable technology means more versatility and custom-tailored light for specific applications. A high-output light with over 300 degrees of illumination, this lamp is perfect for commercial bollard fixtures, post-top lighting, and high ceiling applications, to name a few. A smaller jacket size, base up, down or horizontal use makes this our most versatile A-lamp at this time.

Technical Information

Amperage
0.250-0.090 Amp
Average Rated Life
50000 hr
Beam Spread
280
Color Temperature
Cool White,Warm White
Correlated Color Temp
3000 K
Dimmable?
No
Incandescent Equivalent
200 W
Indoor Outdoor
Indoor;Outdoor
IP Rating
IP64
Lens Color
Frost
Lens Material
Polycarbonate
Lumens
3,000 Lumen
Material
Aluminum
Operating Temperature
-22 degrees C
Power Factor
0.9
Technology Type
LED
Type
Type A
Voltage
100 Volt
Wattage
25 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923131615
Finish
White
Housing Color
White
Product UPC
04592313161
Weight
0.49 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Installation Notes
  • Not for use in vapor tight fixtures.
Features
  • Advanced heat sink design ensures long lifespan, less maintenance
  • ColorQuick technology - Integrated switch allows for 3000K, 4000K and 5000K CCT Selections
  • Damp location rated for indoor or outdoor use
  • Rated for totally enclosed fixtures
  • Reduced jacket size and built-in surge protection
  • FCC/RoHS compliant
  • Superior 80 CRI light quality
Ballasting Requirements
  • Ballast Bypass
Replaced By Products
  • S13100
  • S13101
  • S13102
  • S13103
