HWDK USB8300AC5R RCPT HG DUP 20A 12

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # USB8300AC5R | Codale Part # 4425322
$84.21/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

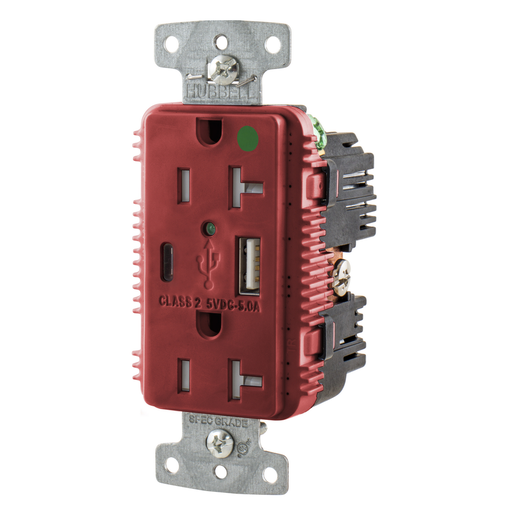

USB Charger Duplex Receptacle, HospitalGrade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, 1) 5A "C" USB and "A"Ports, Red

Technical Information

Amperage
20 Amp
Applications
USB Charging/Power
Conductor Size
14-10 AWG
Current
20 Amp
NEMA
5-20R
Number of Poles
2-2 Pole
Number of Wires
3,3
Size
Standard Sized Product
Style
Style Line Decorator
Tc Connection
Terminal Screws
Temperature Rating
Maximum continuous 75degrees C, minimum -40degrees C (w/o impact)
Type
USB and Power
Voltage
125 VAC
Wattage
2500 Watt
Wire Size
8-2 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
USB Chargers

General Product Info

12-Digit UPC
883778307423
Color
Red
Product Series
Hospital Grade
Product UPC
88377830742
Weight
0.3500 lb

Dimensions

Height
1.9 Inch
Length
4.2 Inch
Width
2.100 in

Certifications and Compliance

Country of Origin
China
Features
  • High Power 5 Amp, 5 Volt USB Output
  • Combination Ports, One Type A, One Type C
  • Tamper Resistant Hospital Grade Duplex Compatible
  • USB Ports Rated 10,000 Cycles
