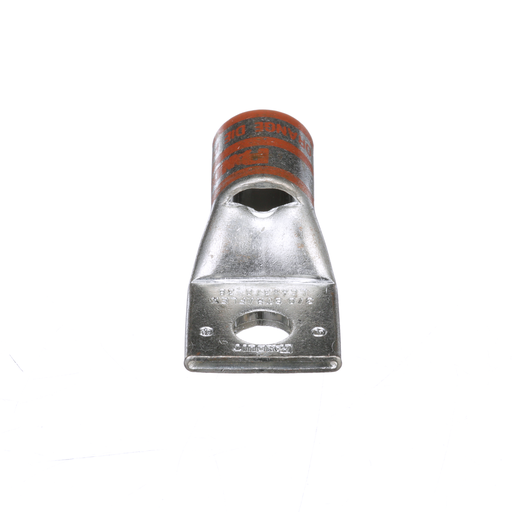

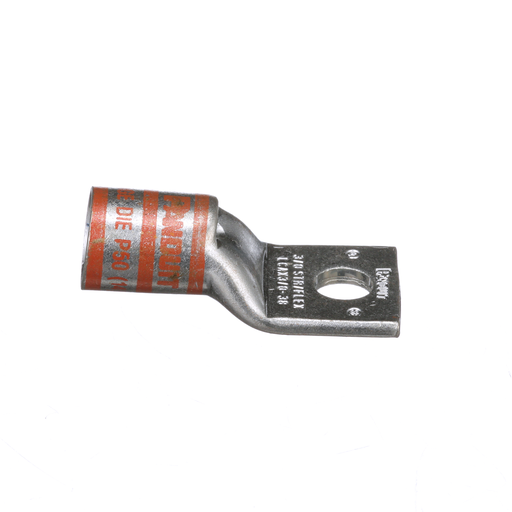

Panduit LCAX3/0-38-X 1-Hole 3/0 AWG Copper Compression Lug

Manufacturer: PANDUIT | Catalog # LCAX3/0-38-X | Codale Part # 4425335
$2,792.59/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The LCAX3/0-38-X Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.

Technical Information

Angle
Straight
Barrel Length
0.91 in
Barrel Type
Standard
Cable Size
AWG
Color Coding
Orange
Material
Copper
Number of Holes
1 Hole
Size
3/0 AWG Class B, C, G, H, I, K, M and DLO
Standard
ANSI C-73
Stud Size
3/8 in
Tongue Thickness
0.14 in
Tongue Type
Standard
Tongue Width
1.06 in
Type
Preterminated Copper Trunk, Category 6
Voltage
35,000 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983435517
Color
Black,Orange,White
Finish
Tin Plated
Product UPC
07498343551
Weight
0.9970 lb

Dimensions

Outer Diameter
0.71 in
Overall Length
2.17 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved
Prop 65
  • No
