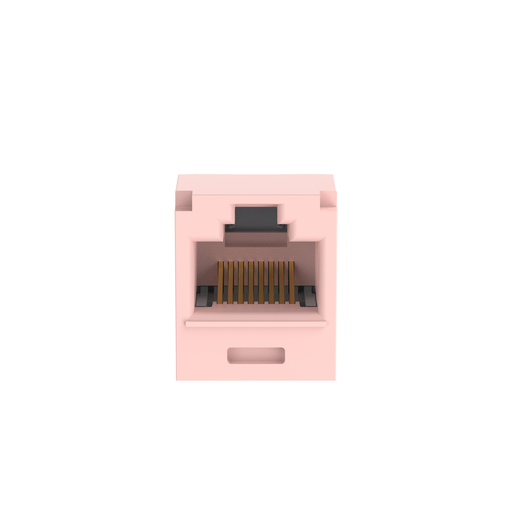

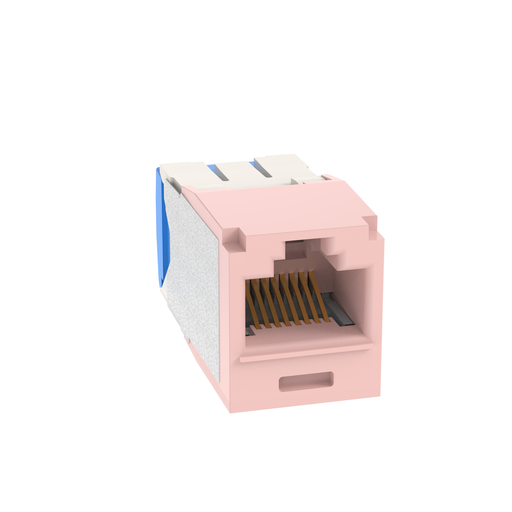

Product image for Panduit CJ6X88TGPK UTP RJ45 Cat 6A TG Jack Module, Pink
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit CJ6X88TGPK UTP RJ45 Cat 6A TG Jack Module, Pink

Manufacturer: Panduit | Catalog # CJ6X88TGPK | Codale Part # 4425554
$44.17/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
The Mini-Com® Cat 6A UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.

Technical Information

Applications
Unshielded
Cable Entry
T568A/T568B
Cable Size
26-22 AWG Solid or Stranded
Cable Type
Category 6A
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Temperature Rating
-10 to 65 degrees C
Type
Unshielded, 8-Wire, RJ45, Universal

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com, TX6A™

General Product Info

12-Digit UPC
074983932085
Color
Pink
Environmental Conditions
< 40 m? Humidity, < 40 m? Thermal Shock
Product UPC
07498393208
Used With
T568A/T568B Cable
Weight
0.0300 lb

Dimensions

Depth
1-1/2 Inch
Height
0.71 Inch
Overall Length
1.5 in
Width
16 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
