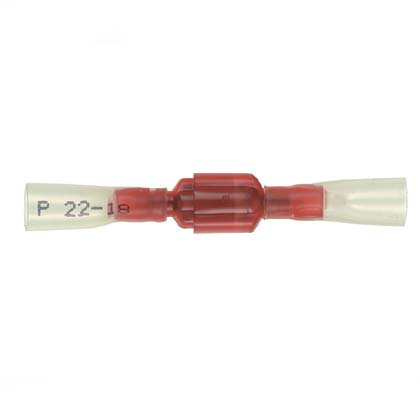

Product image for Panduit DNH18-250FIB-Q 0.25 Inch 22 to 18 AWG Heat Shrink Fully Insulated Female Disconnect
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Panduit DNH18-250FIB-Q 0.25 Inch 22 to 18 AWG Heat Shrink Fully Insulated Female Disconnect

Manufacturer: PANDUIT | Catalog # DNH18-250FIB-Q | Codale Part # 4426035
$452.59/ea (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in red heat shrink housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 1.44" (36.6 mm) long and 0.35" (8.9 mm) wide. The disconnect has a standard barrel configuration and a butted seam barrel. It comes in bags of 25.

Technical Information

Barrel Type
Butted Seam
Color Coding
Red
Conductor Size
18 AWG
Material
Brass
Max Operating Temperature
105 degrees C
Tc Connection
Standard
Temperature Rating
230 F
Type
Disconnect
Voltage
600 Volt
Wire Size
22-18 AWG

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983818273
Color
Red
Finish
Tinned
Product UPC
07498381827
UNSPSC
39121409
Weight
0.6500 lb

Dimensions

Depth
0.84 Inch
Height
0.22 Inch
Overall Length
1.44 in
Width
0.35 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
