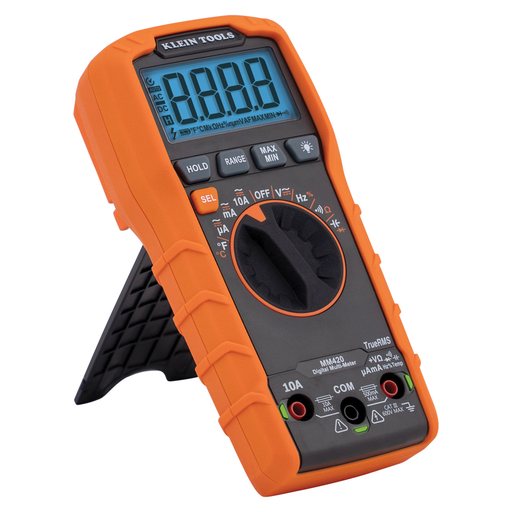

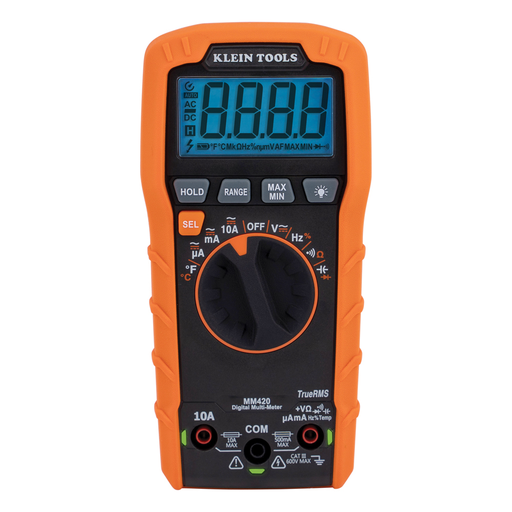

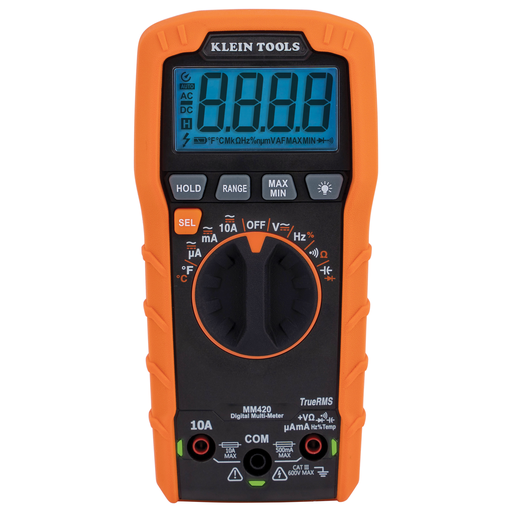

KLEIN MM420 Multimeter, TRMS Auto,

Manufacturer: Klein Tools | Catalog # MM420 | Codale Part # 4426225
$64.98/ea
ea
Log in or register to view your price, purchase history, and more!
19 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
Klein Tools MM420 Multimeter is an auto-ranging, true root mean square (TRMS) multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, and test diodes and continuity. Klein Tools. Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.

Technical Information

Applications
For Testing and Measuring Voltage
Display Type
Backlit LCD
Frequency
1 Hz
Material
ABS Plastic
Standard
Class E Requirements For Channel,Component Level Performance Per TIA,EIA-568-B.2-1 And ISO,Extreme 6+ System Components Meet Or Exceed The Category 6,IEC 11801-B. Components Certified Per UL And CUL Listed, NOM And ACA Requirements
Type
True RMS Auto-Ranging

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644693748
Color
Black,Orange
Product UPC
09264469374
Weight
8.2 oz 231 g

Dimensions

Depth
9.33 Inch
Height
1.78 Inch
Overall Length
6.41 in
Width
3.16 in
Features
  • Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
  • Measures up to 600V AC/DC voltage, 10A AC/DC current and 50 MOhms resistance, continuity, temperature, capacitance, frequency, duty-cycle, and test diodes
  • Lead Alert protection with LED illumination for lead placement and an easy-to-view backlit display
  • Low battery indicator and easily accessible battery and fuse compartment
  • Durable meter built to withstand a 6.6-Foot (2 m) drop
  • Includes test leads, thermocouple with adapter, batteries and user manual
  • CAT III 600V safety rating
  • For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations
  • Lead-Alert; Auto-Range; Min/Max Measurements; Backlight; Auto Power-Off; Data-Hold
  • Measures up to 600V AC/DC voltage, 10A AC/DC current and 50 MOhms resistance, continuity, temperature, capacitance, frequency, duty-cycle, and test diodes
Warnings
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
