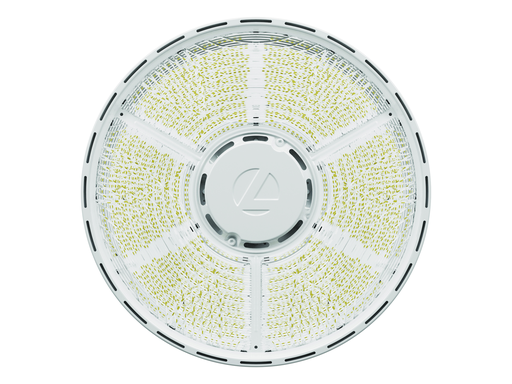

Lithonia CPRB-ALO14-UVOLT-SWW9-80CRI-DWH Compact Pro® LED Round High Bay Fixture, 21K/24K/27K Switchable Lumens 40K/50K, 80 CRI, 120-347V - Gloss White

Manufacturer: Lithonia Lighting | Catalog # CPRBALO14UVOLTSWW980CRIDWH | Codale Part # 4427407
$260.35/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Compact Pro Industrial LED Round High Bay, 18LM, 120V-277V, 4000K, 80 color rendering index, White

Technical Information

Applications
Six common tap sizes (6-32, 8-32, 10-32, 10-24, 12-24, 1/4-20)
Average Rated Life
54,000 hr
Color Rendering Index
80
Correlated Color Temp
0 K
Dimmable?
Yes
Lamp Type
LED
Lens Color
Clear
Lens Material
Polycarbonate
Lumens
Switchable Lumen
Material
Steel
Mounting Type
Pendant,Surface,Suspended
Power Source
Hardwired
Standard
CSA
Style
Traditional
Type
High Bay
Voltage
120 Volt
Wattage
194 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
196182615061
Color
White
Construction
New Construction,Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Gloss
Product UPC
19618261506
Shape
Round
Weight
6.1 L

Dimensions

Height
3.35 Inch
Length
15.14 Inch
Width
15.14 in
Features
  • TECHNOLOGY: Adjustable Lumen Output (21000/24000/27000) and Switchable White (4000K/5000K) features allow for 9 potential configurations within one fixture, using two switches
  • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
  • CONTROLS: 0-10V dimming driver standard for 10% to 100% dimming capabilities; Available with nLight AIR Wireless Controls option
  • RATINGS: CSA listed, Damp location listed, IP54 rated, designed for ambient temperature ranging -37°C to 55°C
  • VOLTAGE: UVOLT driver 120-347V
  • HOURS OF LIFE: 70% lumen maintenance at > 100,000 hours
  • INSTALLATION: Includes patent-pending permanently attached hook with safety latch feature and 7' galvanized safety cable standard
  • BATTERY: Emergency battery pack, 40W AC output, sold separately
  • WARRANTY: 5-year limited warranty
  • DIMENSIONS: 15.14 in. x 15.14 in. x 3.35 in.
Applications
  • Common Areas
  • Sports and Recreation
  • Warehouses
Standards
  • CSADLC Premium
  • DLC Standard
