HWDK 1223PWR SWITCH, CAT#1223R W/8"

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # 1223PWR | Codale Part # 4427415
$21.27/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Three Way, 20A 120/277VAC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Red

Technical Information

Action
SPDT
Actuator
Toggle
Amperage
20 Amp
Applications
8" #12 AWG THHN
Base Material
Thermoplastic
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Material
Silver Alloy
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Flamability Class
UL 94V-2
Grade
Industrial
Material
Thermoplastic,Thermoplastic
Max Current
20 A
Max Voltage
277 V
Number of Poles
1-1 Pole
Operating Cycles
50k
Operating Temperature
-40 degrees C
Screw Material
Brass
Size

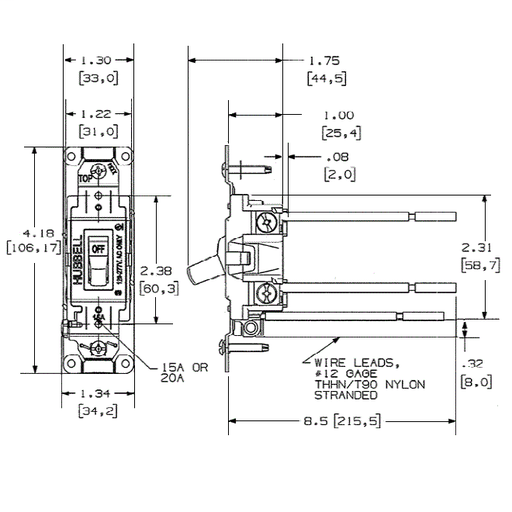

4.18 in x 1.3 in x 1.83 in
Standard
UL
Style
Three Way
Tc Connection
Back and Side Wired
Toggle Material
Nylon
Type
Toggle
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585188263
Color
Red
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Heavy Duty
Product UPC
78358518826
Weight
0.2000 lb

Dimensions

Height
1.83 Inch
Length
4.18 Inch
Width
1.3 in

Certifications and Compliance

Country of Origin
China
Features
  • Steel, zinc plated bridge is corrosion resistant
  • Color Coded by Amperage makes inspection easy even when installed
  • Strip gauge for accurate wiring
